SR60B Handheld Laser Shield (Convex Version)
Shieldrays SR60B handheld convex laser shield, made of Mitsubishi VH001 optical acrylic, 5mm thick, OD6+ at 900-1100nm for low-power (500-2000W) fiber laser outer-corner welding. VLT 38%, LIDT≤8 W/cm². Green color, net weight 68g, aluminum bracket with non-marking installation, fits 90% of welding heads. Size 118×108mm for wider view, custom available.
Product Gallery
Description
SR60B handheld convex laser shield, designed for low-power (500-2000W) fiber laser outer-corner welding. Made of Mitsubishi VH001 optical-grade acrylic, delivering OD6+ protection at 900-1100nm to safeguard operators. 38% VLT ensures clear weld observation. Larger 118×108mm size offers a wider view for comprehensive process monitoring. Weighing only 68g, lightweight and flexible. Aluminum bracket with non-marking installation won't damage equipment, fits 90% of welding heads. Ideal for low-glare
Features

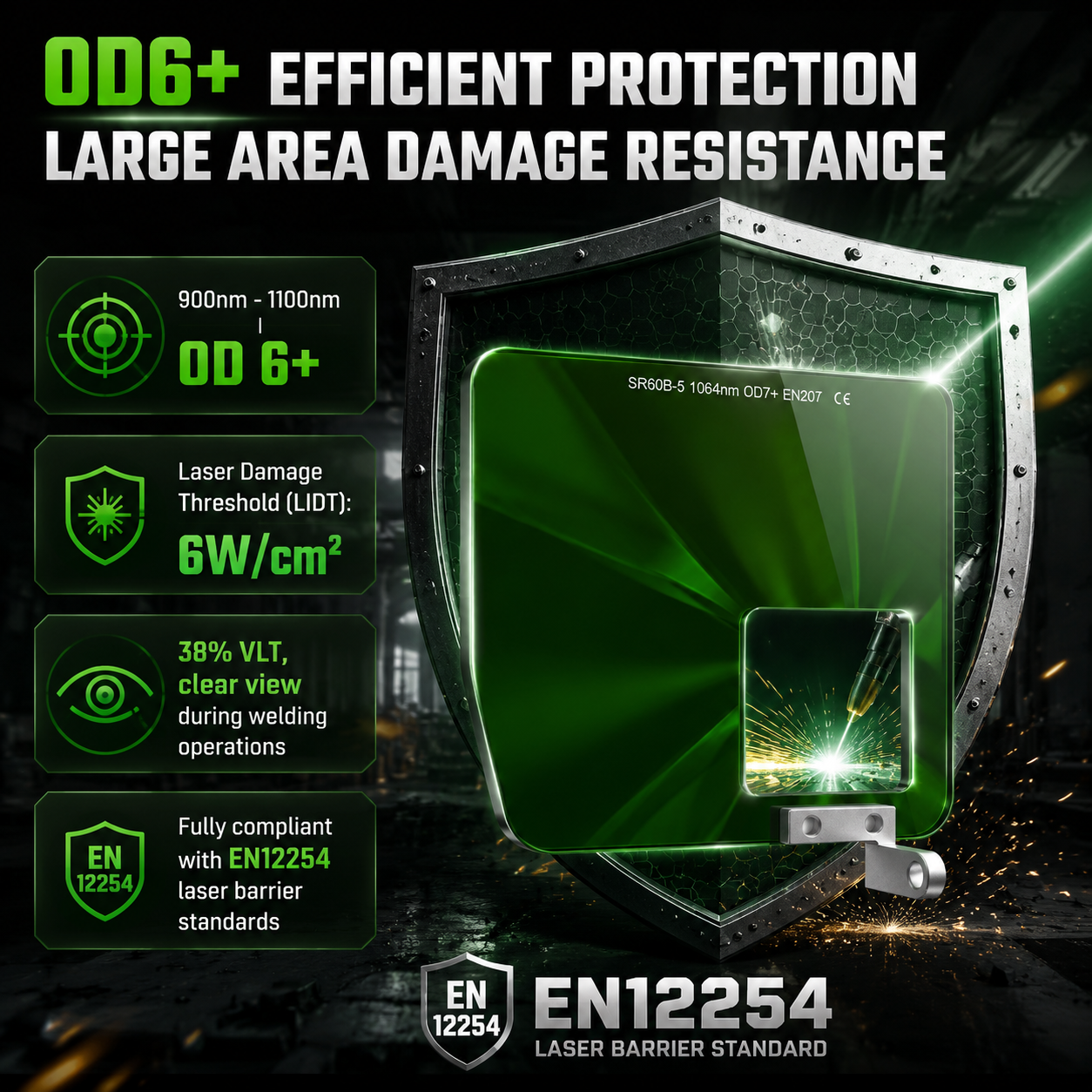

- • Narrow-band high protection: 900-1100nm, OD6+ for fiber lasers

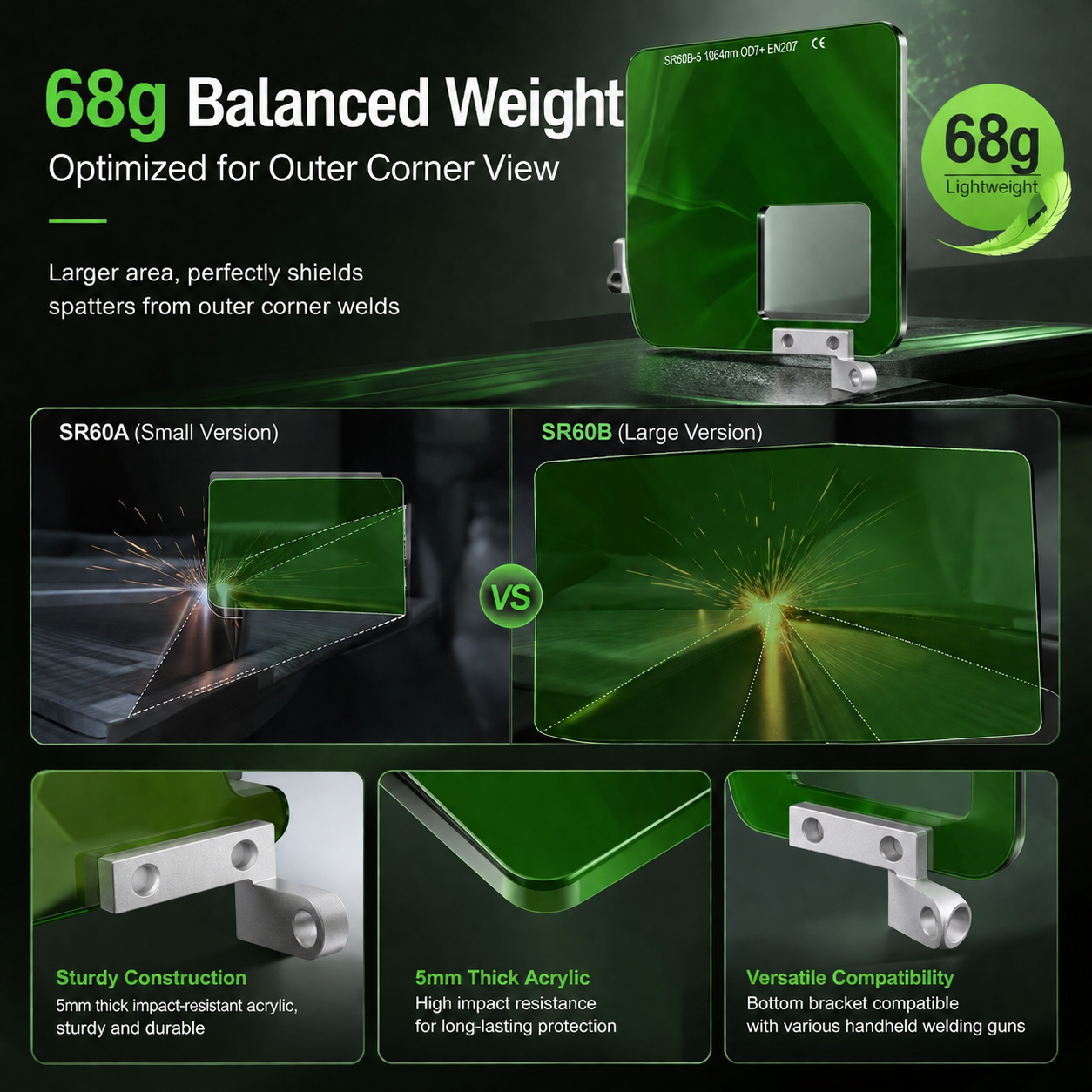

- • Wider view: 118×108mm for enhanced visibility in outer-corner welding
- • Ultra-lightweight: only 68g net weight, fatigue-free operation
- • High visibility: VLT 38% for clear weld point observation
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Aluminum bracket: sturdy & lightweight, non-marking installation, no equipment damage
- • High compatibility: fits 90% of welding heads
- • Green color, ideal fo

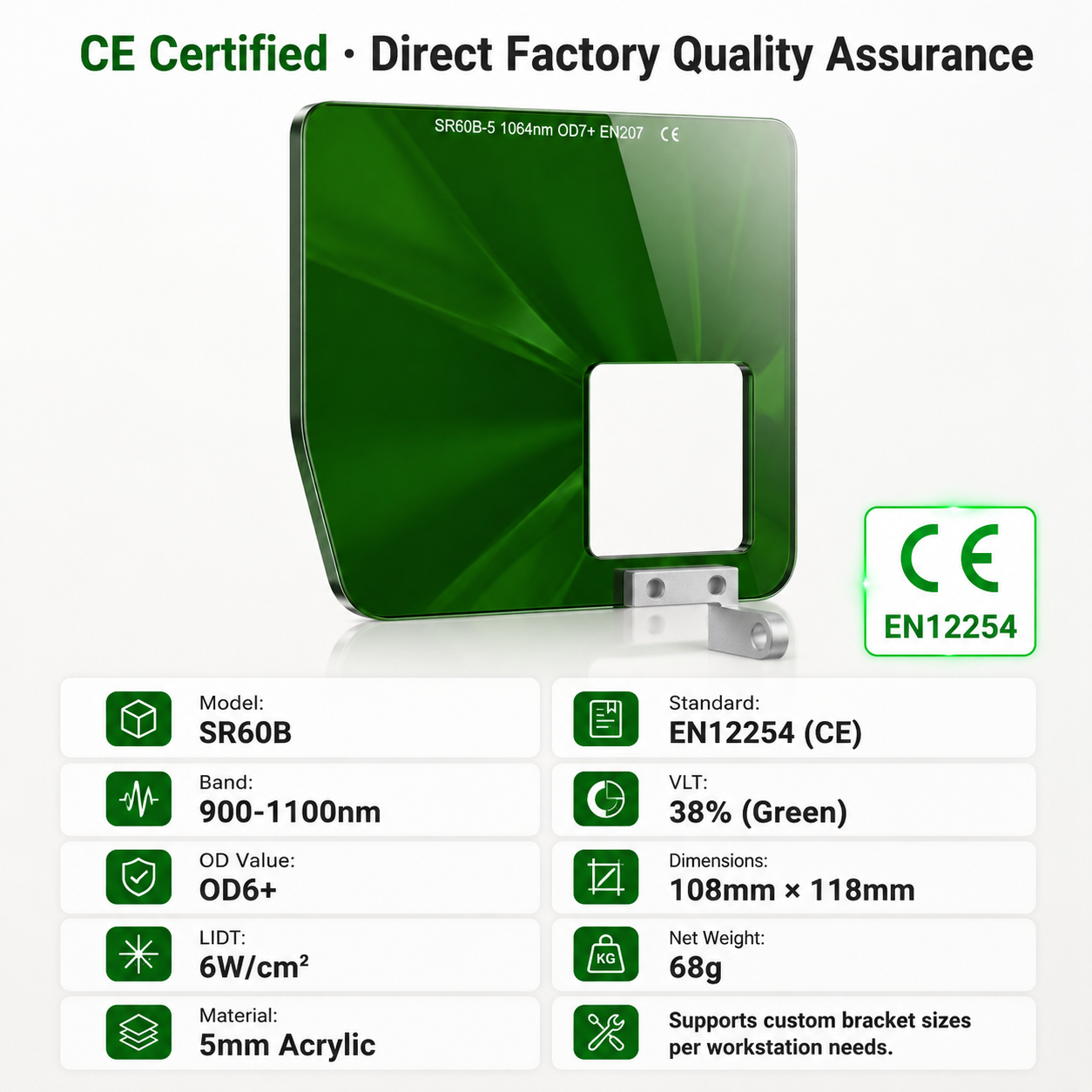

Specifications
- Model
- SR60B
- Type
- Handheld Convex Version;
- Material
- Acrylic (Mitsubishi VH001);
- Thickness
- 5mm
- Range
- 900-1100nm, OD6+
- VLT
- 38%
- LIDT
- ≤8 W/cm²
- Color
- Green
- Net Weight
- 68g
- Density
- 1.19kg/dm³
- Size
- 118×108mm
- Bracket
- Aluminum
- Mounting
- Non-marking
- Compatibility
- 90% of welding heads
- Power
- 500-2000W
- Custom
- Yes
- Application

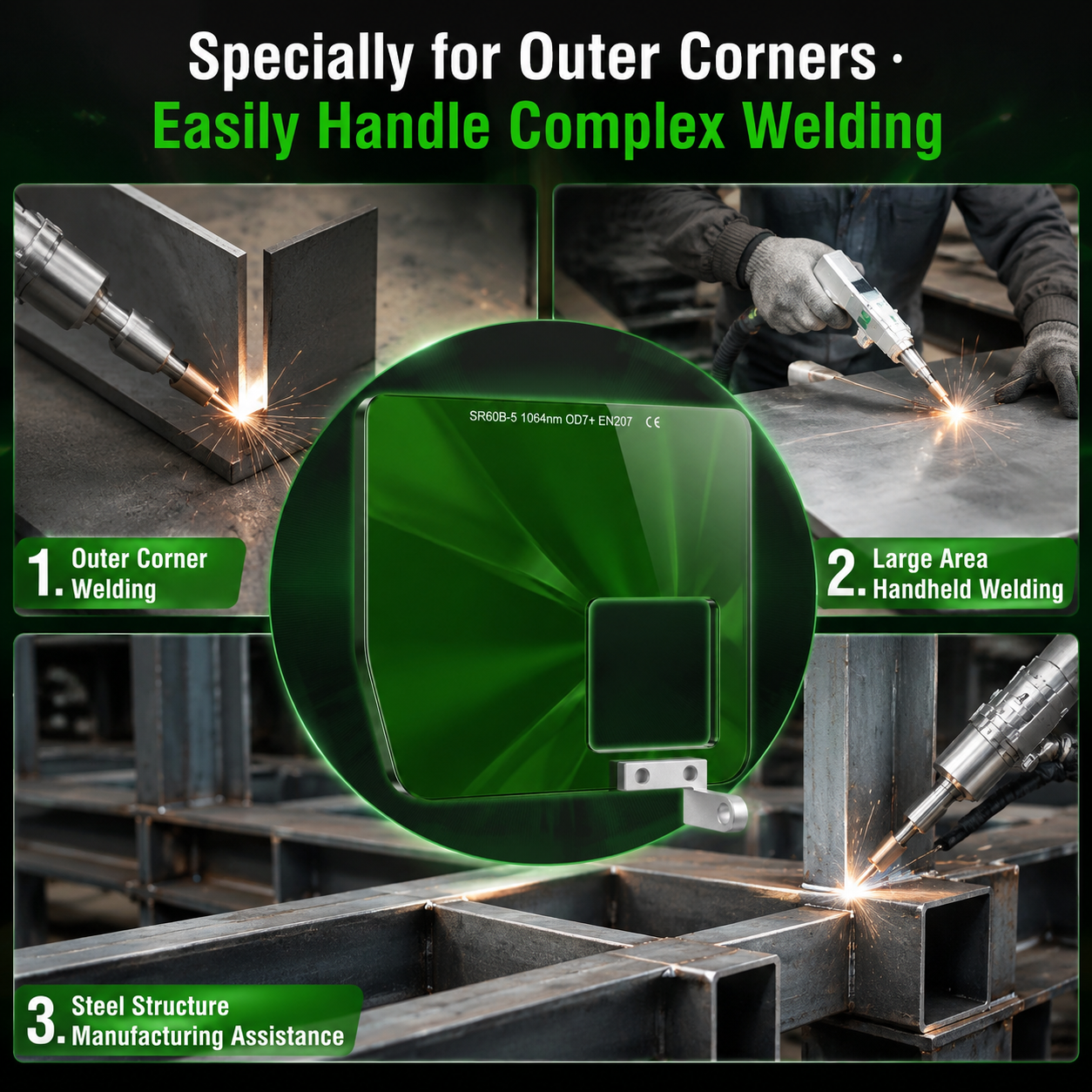

- Fiber laser outer-corner welding
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
