SR31A Laser Welding Helmet (Standard)
Shieldrays SR31A Laser Welding Helmet (Standard), OD6+ protection at 900-1100nm for fiber laser welding. VLT 38% for clear visibility, LIDT≤6 W/cm². Green lens, 5mm main lens with 1mm PC protective cover, viewing window 110×90mm. Net weight 490g, ergonomic design for comfortable wear. Size 230×300×330mm, LOGO customization available. Reliable facial protection for laser welding.
Product Gallery
Description
SR31A Laser Welding Helmet (Standard), designed for fiber laser welding operators. Delivers OD6+ protection at 900-1100nm to safeguard face and eyes. 38% VLT ensures clear weld point visibility for precise operation. 110×90mm viewing window offers a wide field of view. 5mm main lens with 1mm replaceable PC protective cover extends service life. Ergonomic design with adjustable headband, only 490g for fatigue-free extended wear. LOGO customization available for brand enhancement.
Features
- • Narrow-band protection: 900-1100nm, OD6+ for fiber laser welding
- • High visibility: VLT 38% for clear weld observation and precision

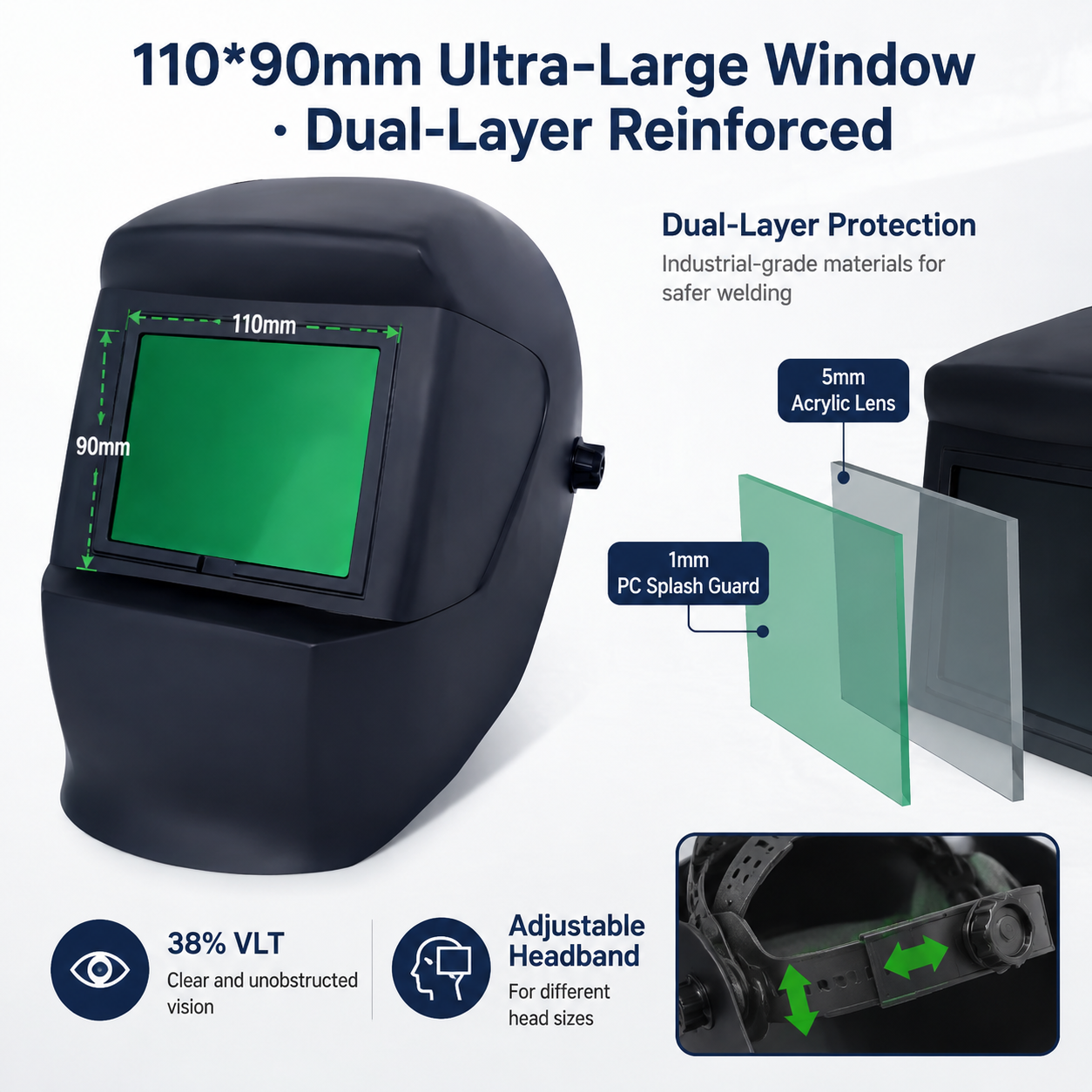

- • Wide view: 110×90mm window for full welding process visibility
- • Dual-lens protection: 5mm main lens + 1mm replaceable PC cover
- • Lightweight: 490g net weight for comfortable extended wear
- • Ergonomic design: adjustable headband fits various head sizes
- • LOGO customization available for professional branding
- • Application: laser welding in low-glare environment

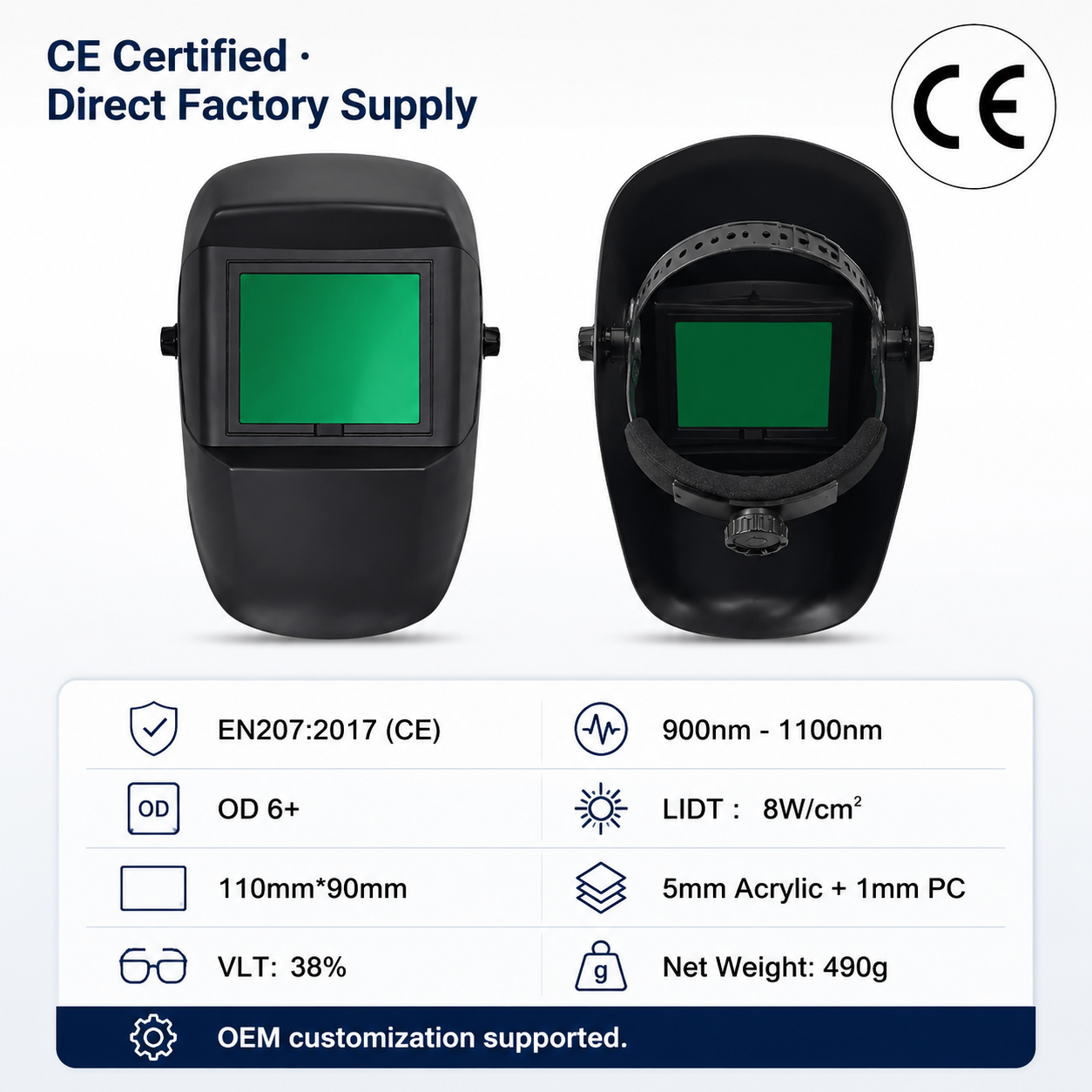

Specifications
- Model
- SR31A
- Type
- Laser Welding Helmet (Standard)
- Protection Range
- 900-1100nm
- Optical Density
- OD6+
- VLT
- 38%
- LIDT
- ≤6 W/cm²
- Lens Color
- Green
- Main Lens Thickness
- 5mm
- PC Cover Thickness
- 1mm
- Viewing Window Size
- 110×90mm
- Net Weight
- 490g
- Product Size
- 230×300×330mm
- Headband Type
- Adjustable
- Customization
- LOGO Available
- Application
- Laser Welding
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
