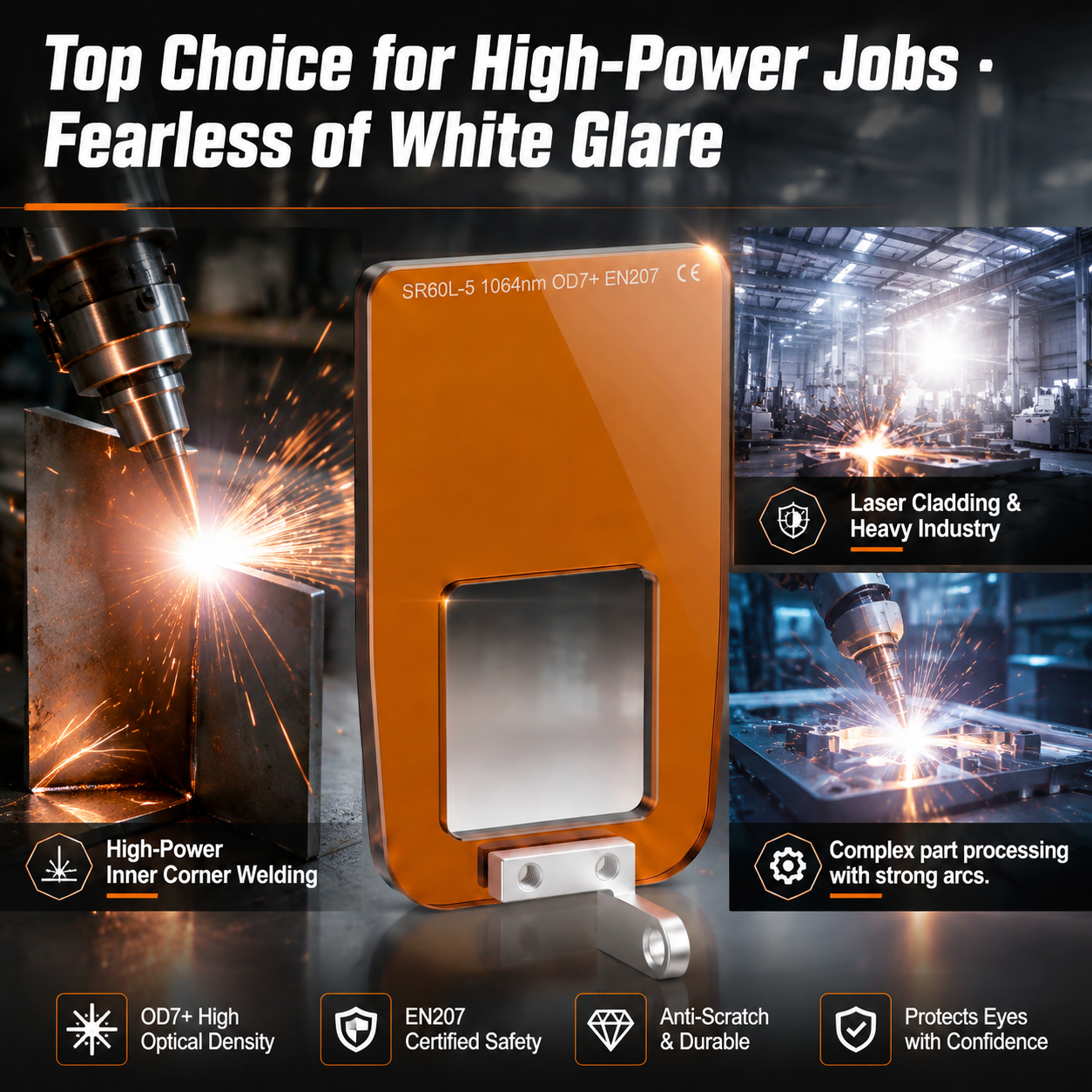

SR60L Handheld Laser Shield (High-Power Corner Version)
Shieldrays SR60L handheld high-power corner laser shield, made of Mitsubishi VH001 optical acrylic, 5mm thick, OD6+ at 900-1100nm for high-power (>2000W) fiber laser inner-corner welding. VLT 14% effectively filters intense light, LIDT≤8 W/cm². Amber color, only 38g net weight, aluminum bracket with non-marking installation, fits 90% of welding heads. Compact 108×69mm avoids interference, custom available.
Product Gallery
Description

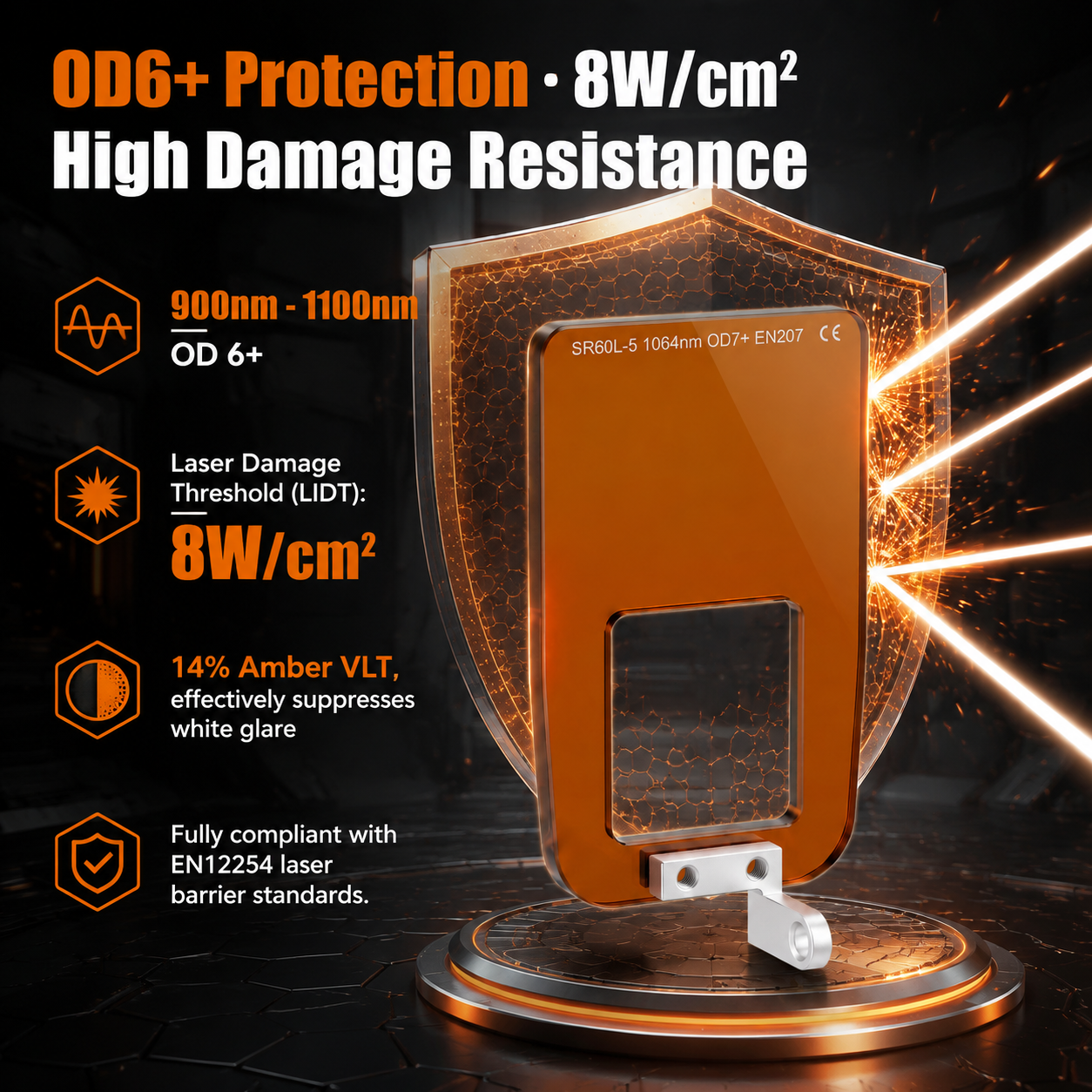

SR60L handheld high-power corner laser shield, designed for high-power (≧2000W) fiber laser inner-corner welding. Made of Mitsubishi VH001 optical-grade acrylic, delivering OD6+ protection at 900-1100nm to safeguard operators. 14% low VLT with amber color effectively suppresses intense glare from high-power welding, reducing eye fatigue. Compact 108×69mm size avoids interference with workpieces in corner welding. Only 38g net weight, ultra-lightweight.
Features
- • Narrow-band high protection: 900-1100nm, OD6+ for fiber lasers
- • High-power compatible≧2000W for demanding welding protection
- • Low VLT 14% with amber color: effectively suppresses intense glare

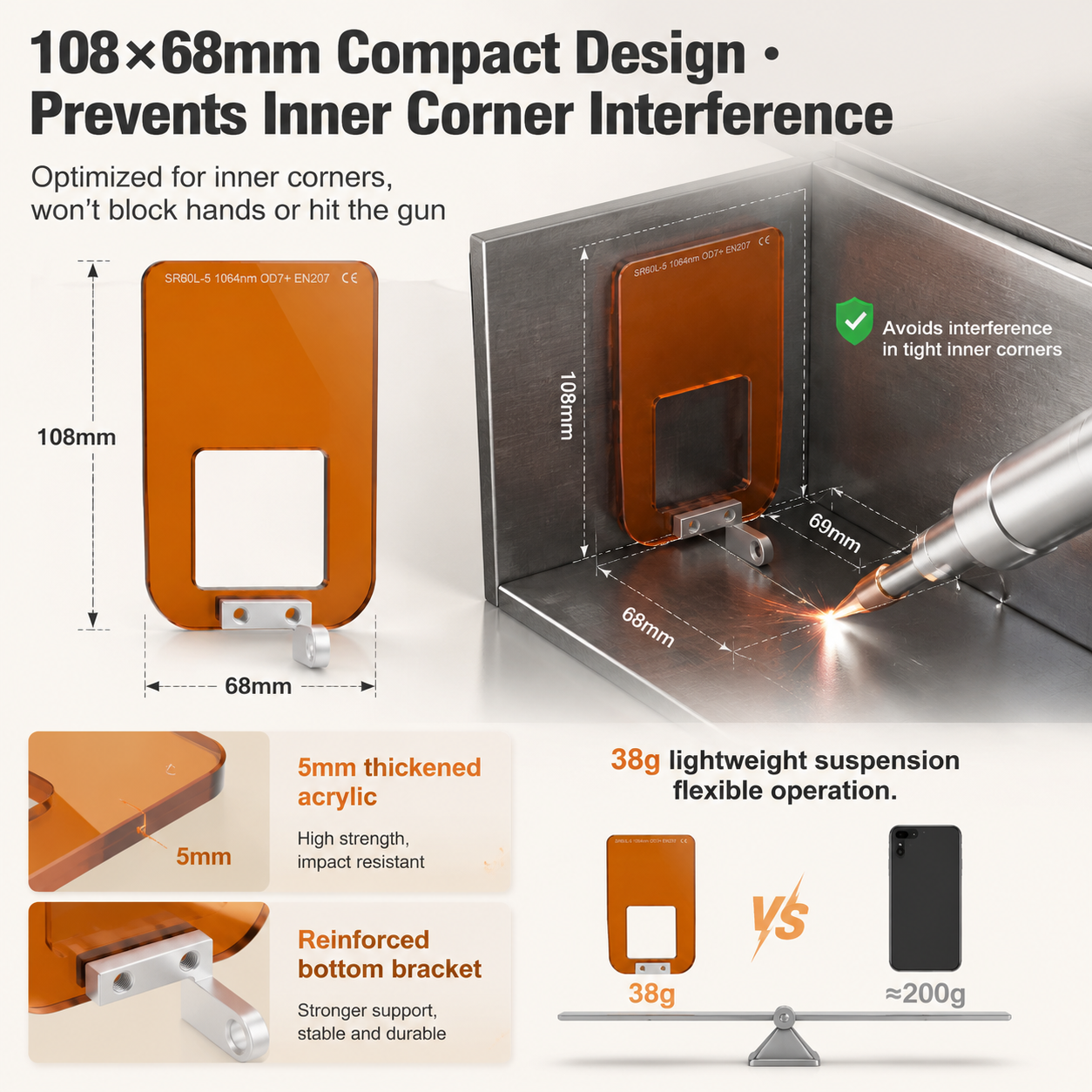

- • Compact anti-interference: 108×69mm for obstruction-free corner welding
- • Ultra-lightweight: only 38g net weight for flexible operation
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Aluminum bracket: non-marking installation, no equipment damage, fits 90% of weldi

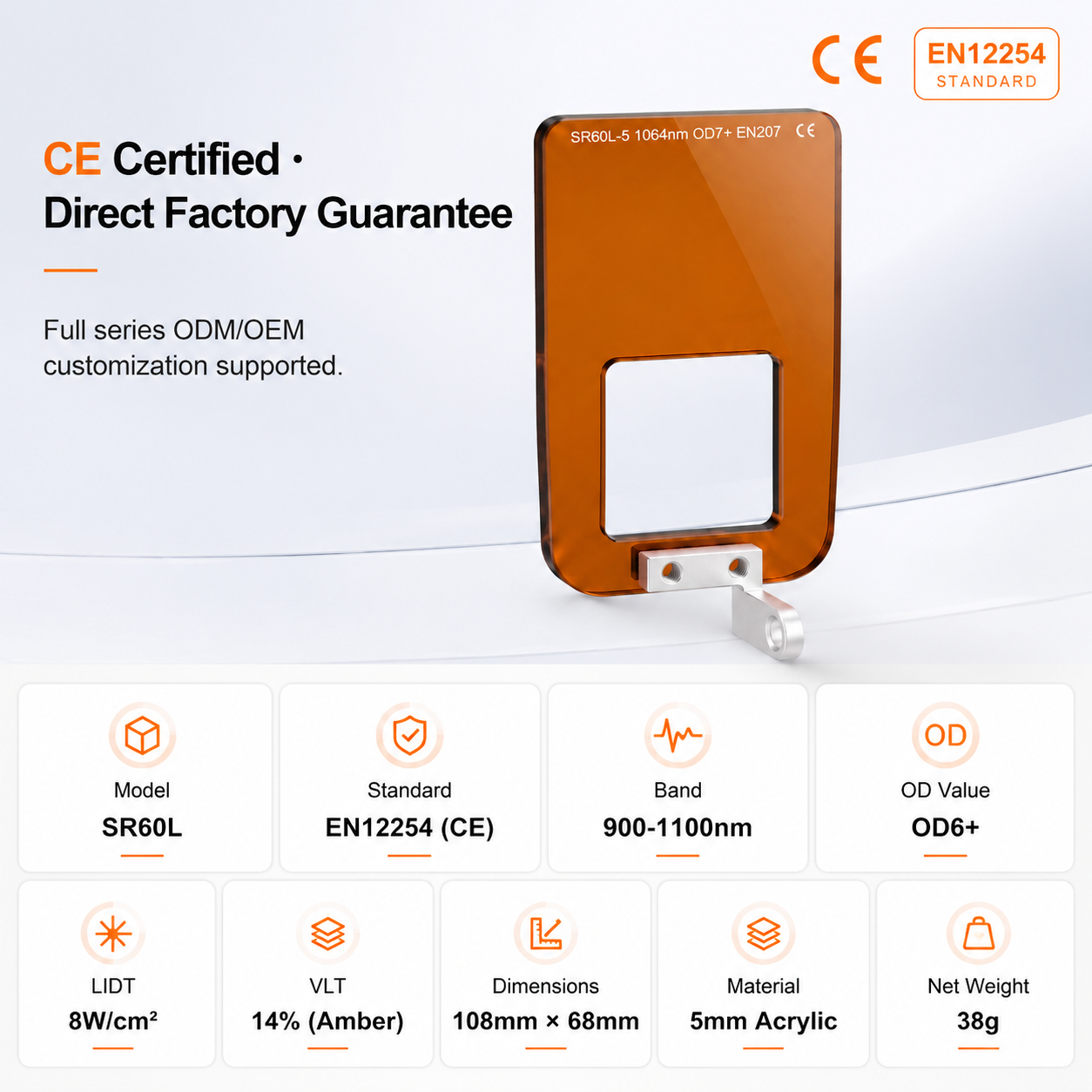

Specifications
- Model
- SR60L
- Type
- Handheld Corner Version (High-Power)
- Material
- Acrylic (Mitsubishi VH001)
- Thickness
- 5mm
- Protection Range
- 900-1100nm
- Optical Density
- OD6+
- VLT
- 14%
- LIDT
- ≤8 W/cm²
- Color
- Amber
- Net Weight
- 38g
- Density
- 1.19kg/dm³
- Size
- 108×69mm
- Bracket Material
- Aluminum Alloy
- Mounting
- Non-marking Installation
- Welding Head Compatibility
- 90% of the market
- Applicable Power
- >2000W
- Customization
- Available
- Application
- Fiber Laser Inner-Corner Welding
