SR60M Handheld Laser Shield (High-Power Convex Version)
Shieldrays SR60M handheld high-power convex laser shield, made of Mitsubishi VH001 optical acrylic, 5mm thick, OD6+ at 900-1100nm for high-power (>2000W) fiber laser outer-corner welding. VLT 38%, LIDT≤8 W/cm². Amber color effectively filters intense glare. Net weight 68g, aluminum bracket with non-marking installation, fits 90% of welding heads. Size 118×108mm for wide view, custom available.
Product Gallery
Description
SR60M handheld high-power convex laser shield, designed for high-power (>2000W) fiber laser outer-corner welding. Made of Mitsubishi VH001 optical-grade acrylic, delivering OD6+ protection at 900-1100nm to safeguard operators. 38% VLT ensures clear weld observation, amber color effectively suppresses intense glare and reduces eye fatigue. 118×108mm wide view for comprehensive monitoring. Weighing only 68g, lightweight and flexible. Aluminum bracket with non-marking installation, fits 90% of weld
Features
- • Narrow-band high protection: 900-1100nm, OD6+ for fiber lasers
- • High-power compatible: >2000W, meeting high-power welding protection needs
- • Amber light filtering: effectively suppresses intense glare, reduces eye fatigue

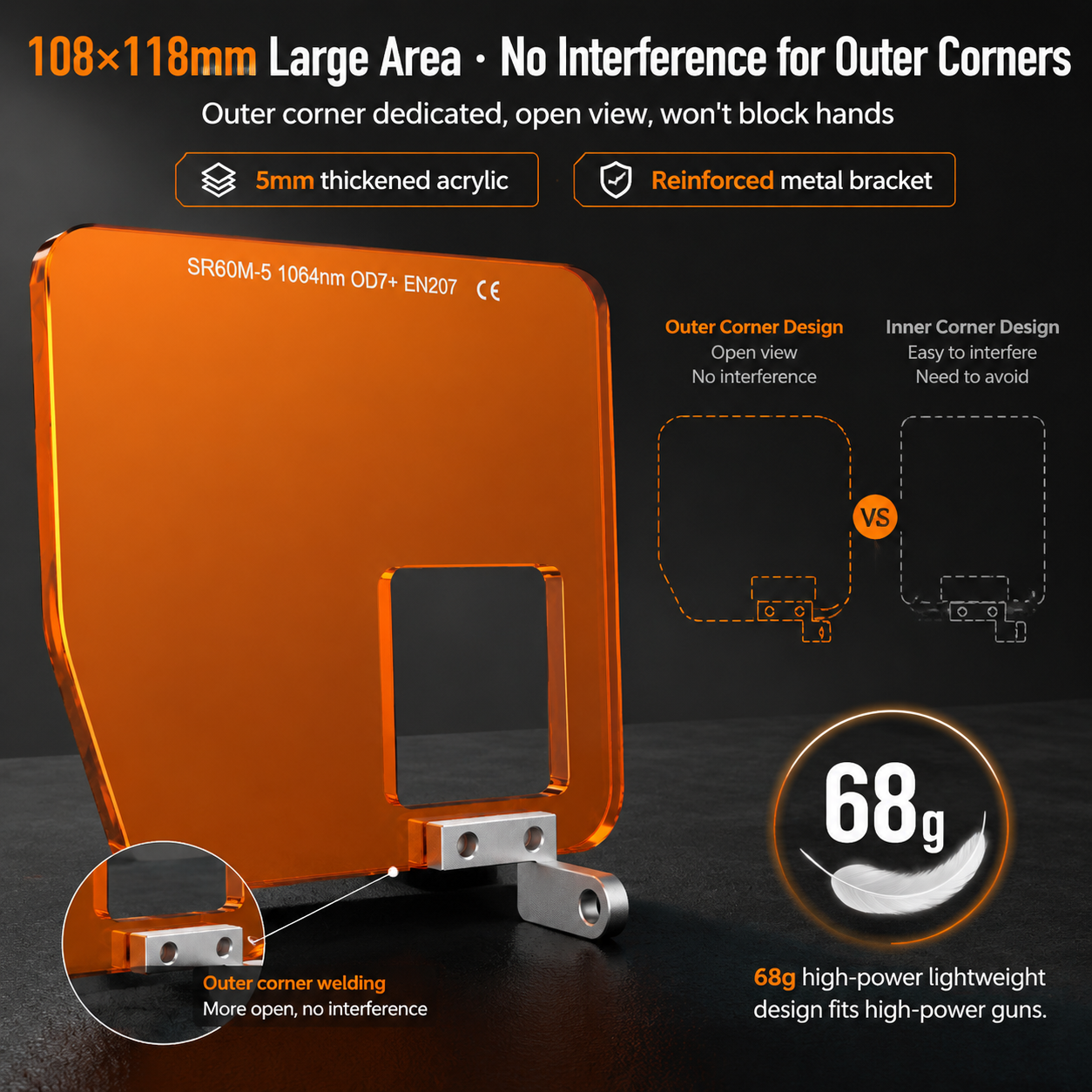

- • Wide view: 118×108mm for enhanced visibility in outer-corner welding
- • Ultra-lightweight: only 68g net weight, fatigue-free operation
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Aluminum bracket: non-marking installation

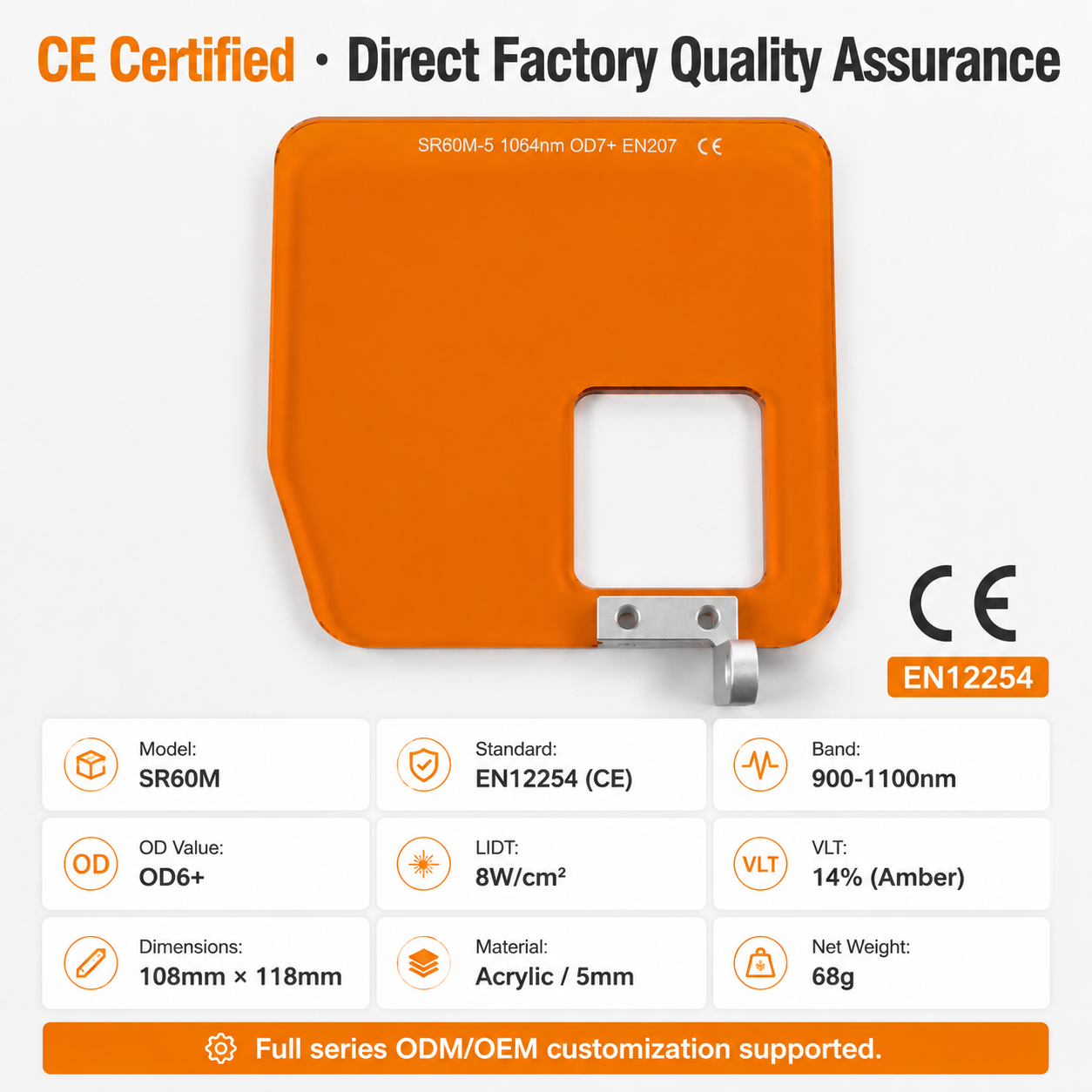

Specifications
- Model
- SR60M
- Type
- Handheld Convex Version (High-Power)
- Material
- Acrylic (Mitsubishi VH001)
- Thickness
- 5mm
- Protection Range
- 900-1100nm
- Optical Density
- OD6+
- VLT
- 14%
- LIDT
- ≤8 W/cm²
- Color
- Amber
- Net Weight
- 68g
- Density
- 1.19kg/dm³
- Size
- 118×108mm
- Bracket Material
- Aluminum Alloy
- Mounting
- Non-marking Installation
- Welding Head Compatibility
- 90% of the market
- Applicable Power
- >2000W
- Customization
- Available
- Application
- Fiber Laser Outer-Corner Welding
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
