SR60A Handheld Laser Shield (Corner Version)
Shieldrays SR60A handheld corner laser shield, made of Mitsubishi VH001 optical acrylic, 5mm thick, OD6+ at 900-1100nm for low-power (500-2000W) fiber laser inner-corner welding. VLT 38%, LIDT≤8 W/cm². Green color, aluminum bracket with non-marking installation, fits 90% of welding heads. Size 108×69mm, custom available.
Product Gallery
Description

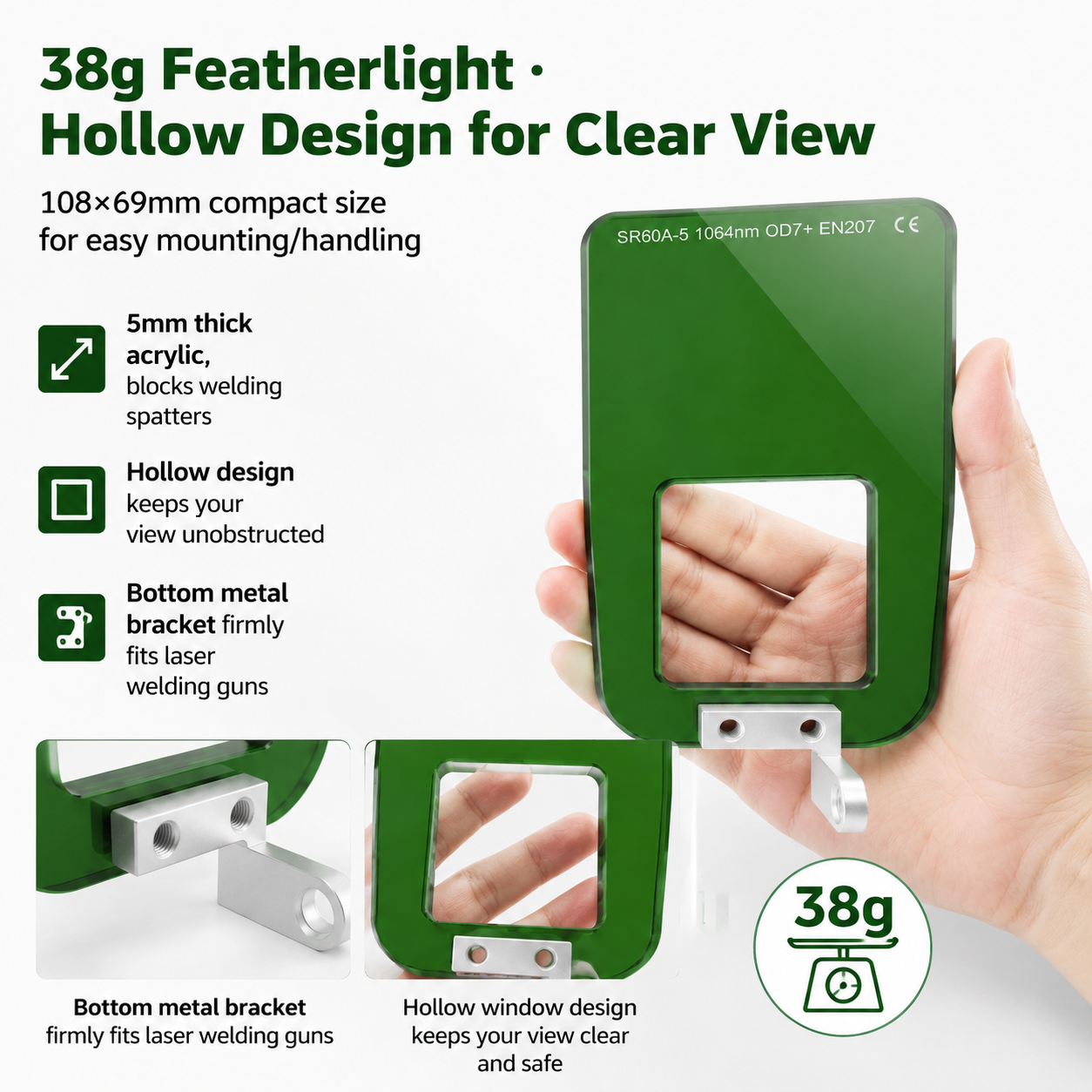

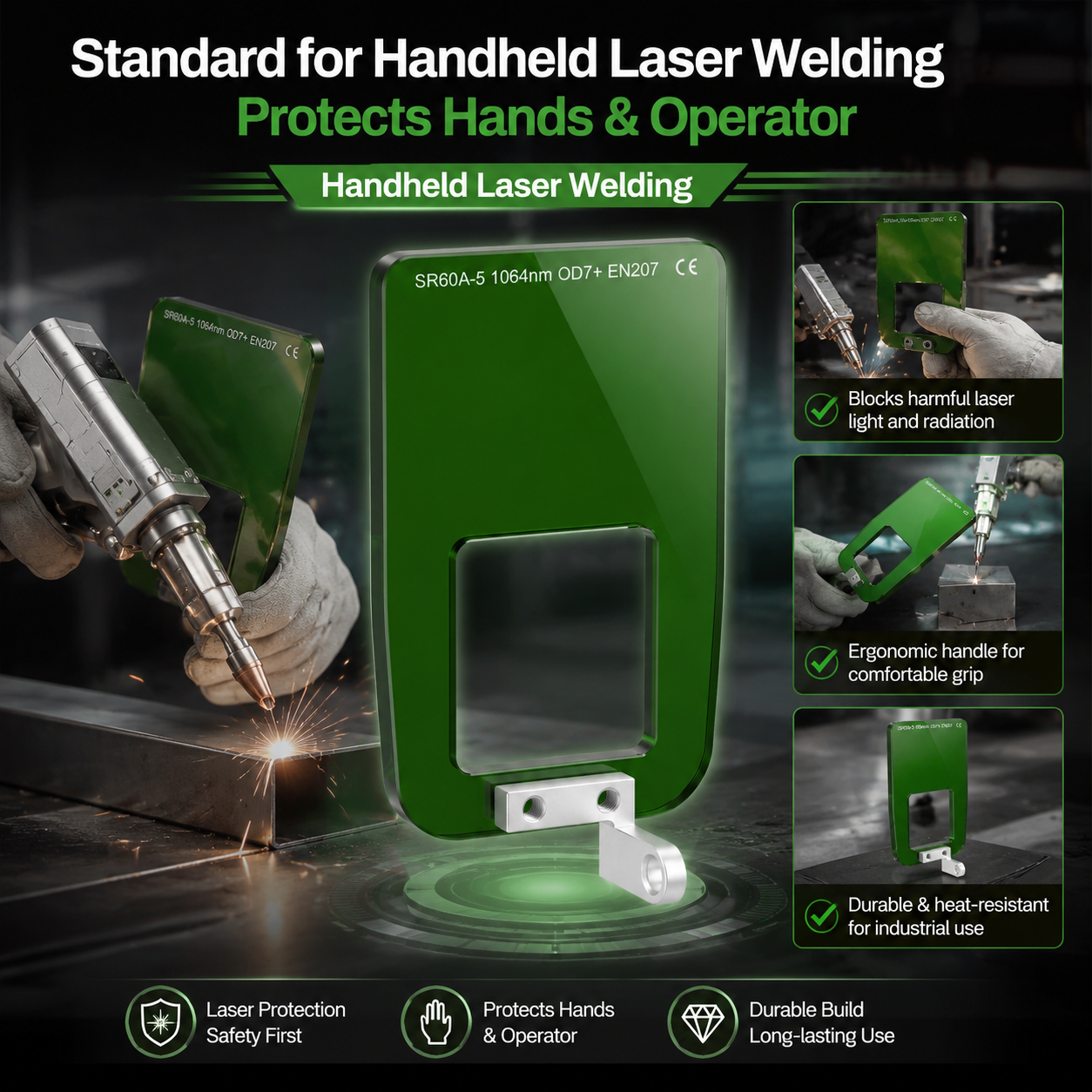

SR60A handheld corner laser shield, specifically designed for low-power (500-2000W) fiber laser inner-corner welding. Made of Mitsubishi VH001 optical-grade acrylic, delivering OD6+ protection at 900-1100nm to safeguard operators. 38% VLT ensures clear weld observation. Compact 108×69mm size avoids interference with workpieces. Aluminum bracket with non-marking installation won't damage equipment, fits 90% of welding heads on the market. Ideal for low-glare welding environments.
Features

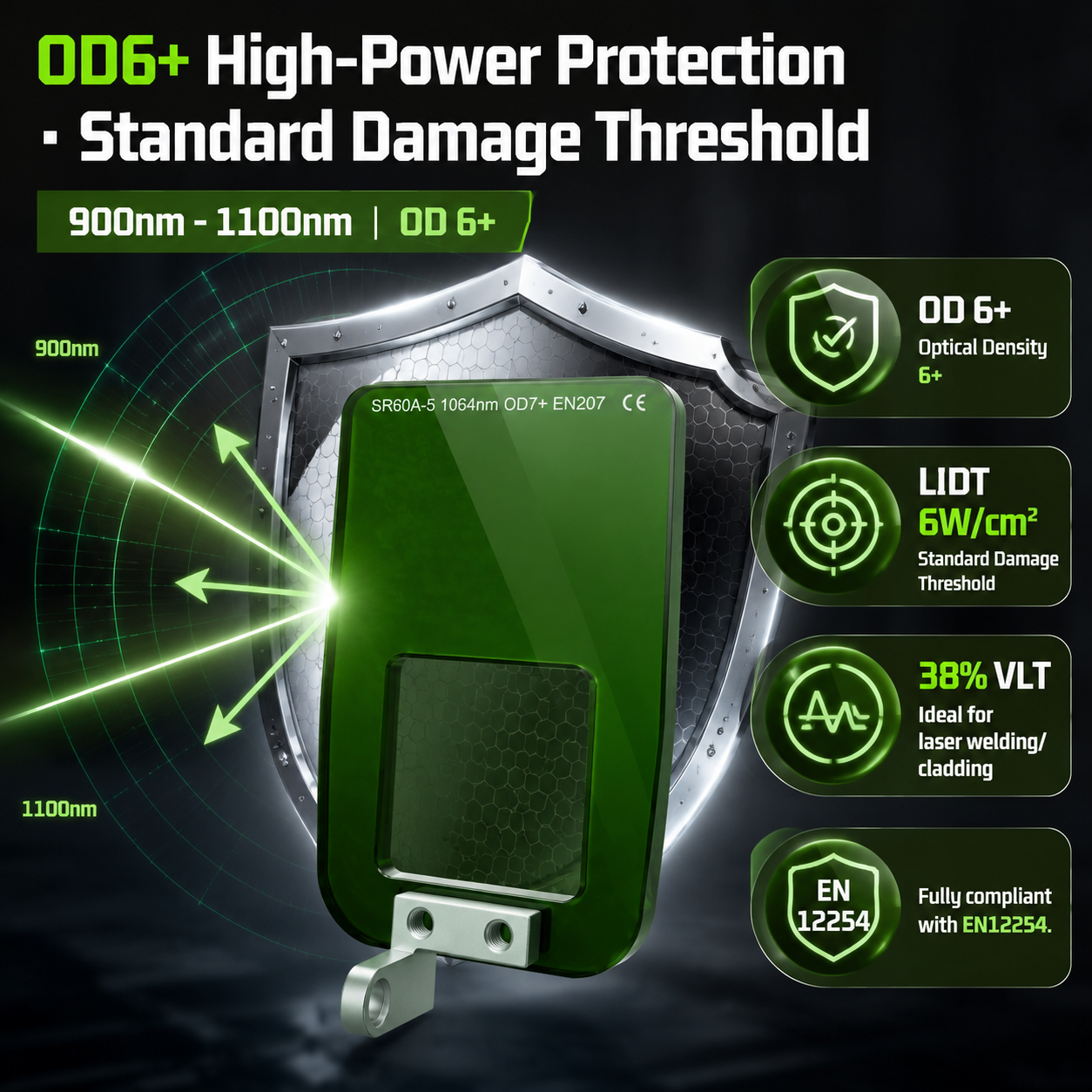

- • Narrow-band high protection: 900-1100nm, OD6+ for fiber lasers
- • Compact size: 108×69mm, avoids interference in corner welding
- • High visibility: VLT 38% for clear weld point observation
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Aluminum bracket: sturdy & lightweight, non-marking installation, no equipment damage
- • High compatibility: fits 90% of welding heads
- • Green color, ideal for low-glare environments
- • Custom sizes available

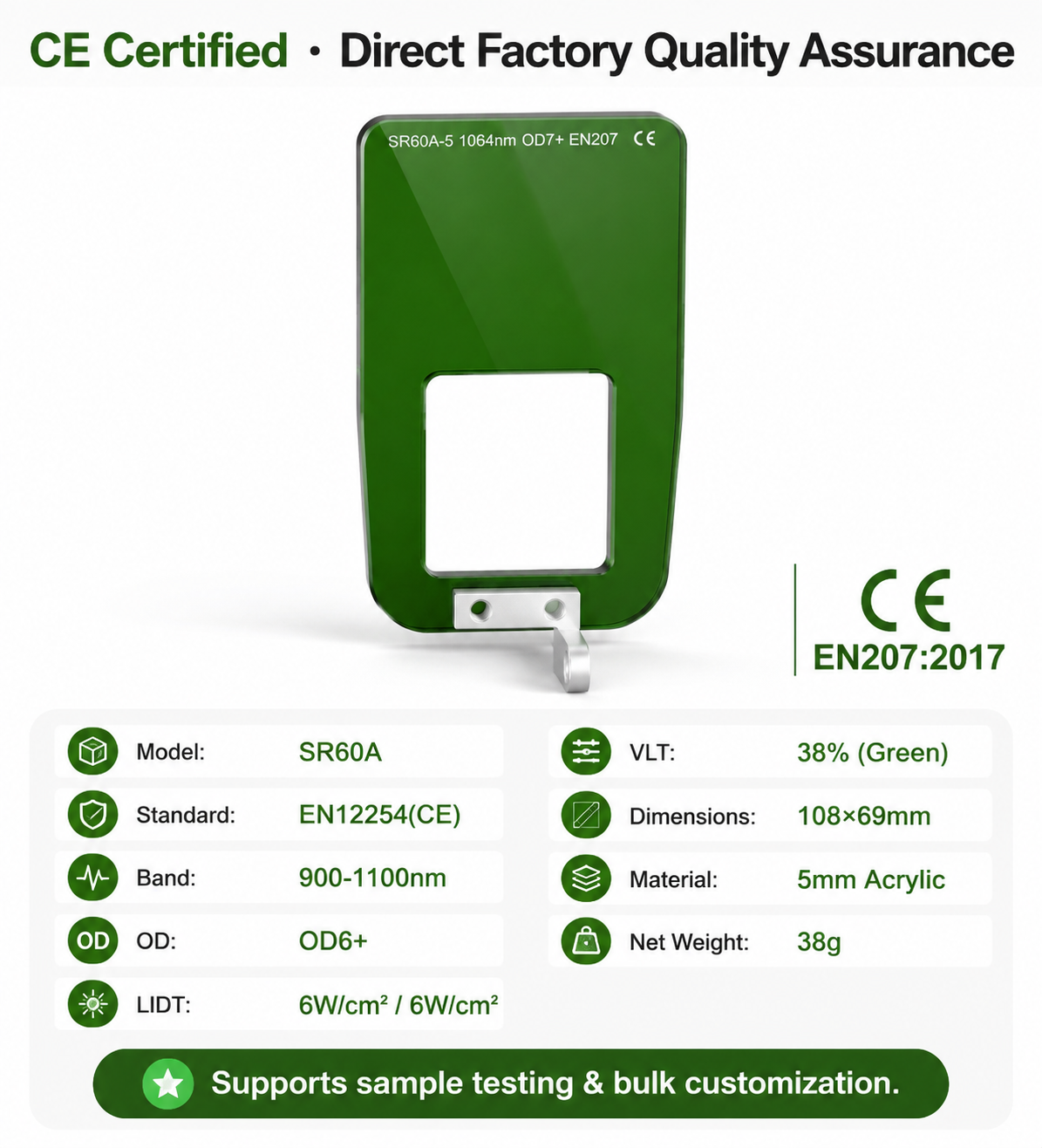

Specifications
- Model
- SR60A
- Type
- Handheld Corner Version
- Material
- Acrylic (Mitsubishi VH001)
- Thickness
- 5mm
- Range
- 900-1100nm, OD6+
- VLT
- 38%
- LIDT
- ≤8 W/cm²
- Color
- Green
- Net Weight
- 38g
- Size
- 108×69mm
- Bracket
- Aluminum
- Mounting
- Non-marking
- Compatibility
- 90% of welding heads
- Power
- 500-2000W
- Custom
- Yes
- Application
- Fiber laser inner-corner welding
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
