SR31B Laser Welding Helmet (High-Power)
Shieldrays SR31B Laser Welding Helmet (High-Power), OD6+ protection at 900-1100nm for high-power fiber laser welding. VLT 14% low transmittance with amber lens effectively filters intense white glare. LIDT≤8 W/cm². 110×90mm viewing window, 5mm main lens with 1mm PC cover. 490g net weight, ergonomic design. Size 230×300×330mm, LOGO customization available.
Product Gallery
Description
SR31B Laser Welding Helmet , designed for high-power fiber laser welding operators, especially for high-glare environments. Delivers OD6+ protection at 900-1100nm to safeguard face and eyes. 14% low VLT with amber lens effectively suppresses intense white glare from high-power welding, significantly reducing eye fatigue. 110×90mm viewing window offers a wide field of view. Ergonomic design with adjustable headband, only 490g for comfortable extended wear. LOGO customization available.
Features
- • Narrow-band protection: 900-1100nm, OD6+ for fiber laser welding
- • High-power compatible: effectively filters intense glare from high-power welding
- • Low VLT 14% with amber lens: reduces eye fatigue effectively
- • Wide view: 110×90mm window for full welding process visibility

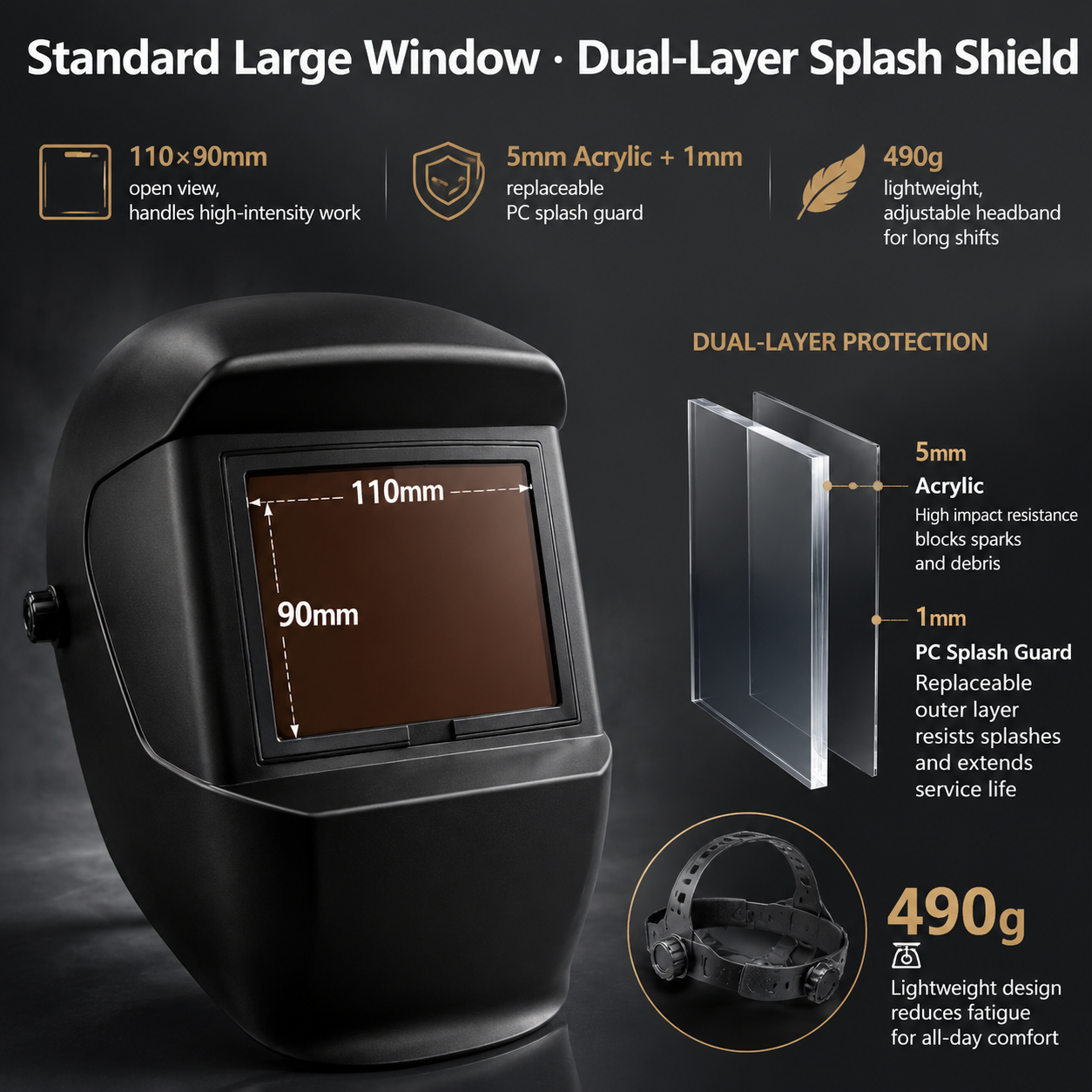

- • Dual-lens protection: 5mm main lens + 1mm replaceable PC cover
- • Lightweight: 490g net weight for comfortable extended wear
- • Ergonomic design: adjustable headband fits various head sizes
- • LOGO customization available
Specifications
- Model
- SR31B
- Type
- Laser Welding Helmet (High-Power)
- Protection Range
- 900-1100nm
- Optical Density
- OD6+
- VLT
- 14%
- LIDT
- ≤8 W/cm²
- Lens Color
- Amber
- Main Lens Thickness
- 5mm
- PC Cover Thickness
- 1mm
- Viewing Window Size
- 110×90mm
- Net Weight
- 490g
- Product Size
- 230×300×330mm
- Headband Type
- Adjustable
- Customization
- LOGO Available
- Application
- High-Power Laser Welding (High-Glare Environment)
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
