SR32A Laser Welding Helmet (Standard)

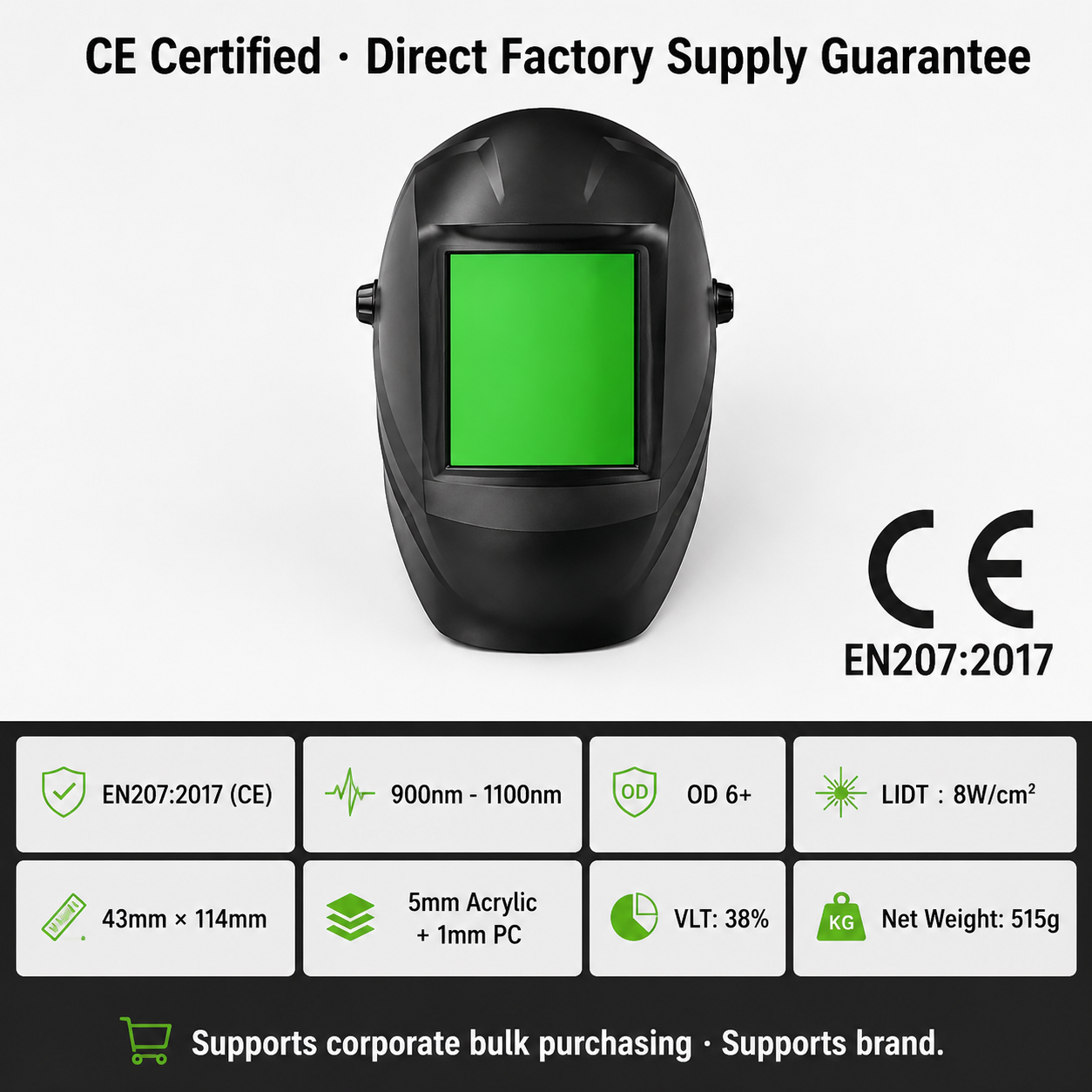

Shieldrays SR32A Laser Welding Helmet (Standard), OD6+ protection at 900-1100nm for fiber laser welding. VLT 38% for clear visibility, LIDT≤6 W/cm². Green lens, extra-large 143×114mm viewing window, 5mm main lens with 1mm PC cover. 515g net weight, adjustable headband. Size 230×300×330mm, LOGO customization available.
Product Gallery
Description
SR32A Laser Welding Helmet (Standard), designed for fiber laser welding operators. Delivers OD6+ protection at 900-1100nm to safeguard face and eyes. 38% VLT ensures clear weld point visibility for precise operation. Extra-large 143×114mm viewing window offers a full view of welding details. 5mm main lens with 1mm replaceable PC cover extends service life. Adjustable headband fits various head sizes, 515g net weight. LOGO customization available.
Features
- • Narrow-band OD6+ protection at 900-1100nm for fiber laser welding
- • High visibility: VLT 38% for clear weld observation and precision
- • Extra-large 143×114mm viewing window for full weld detail visibility

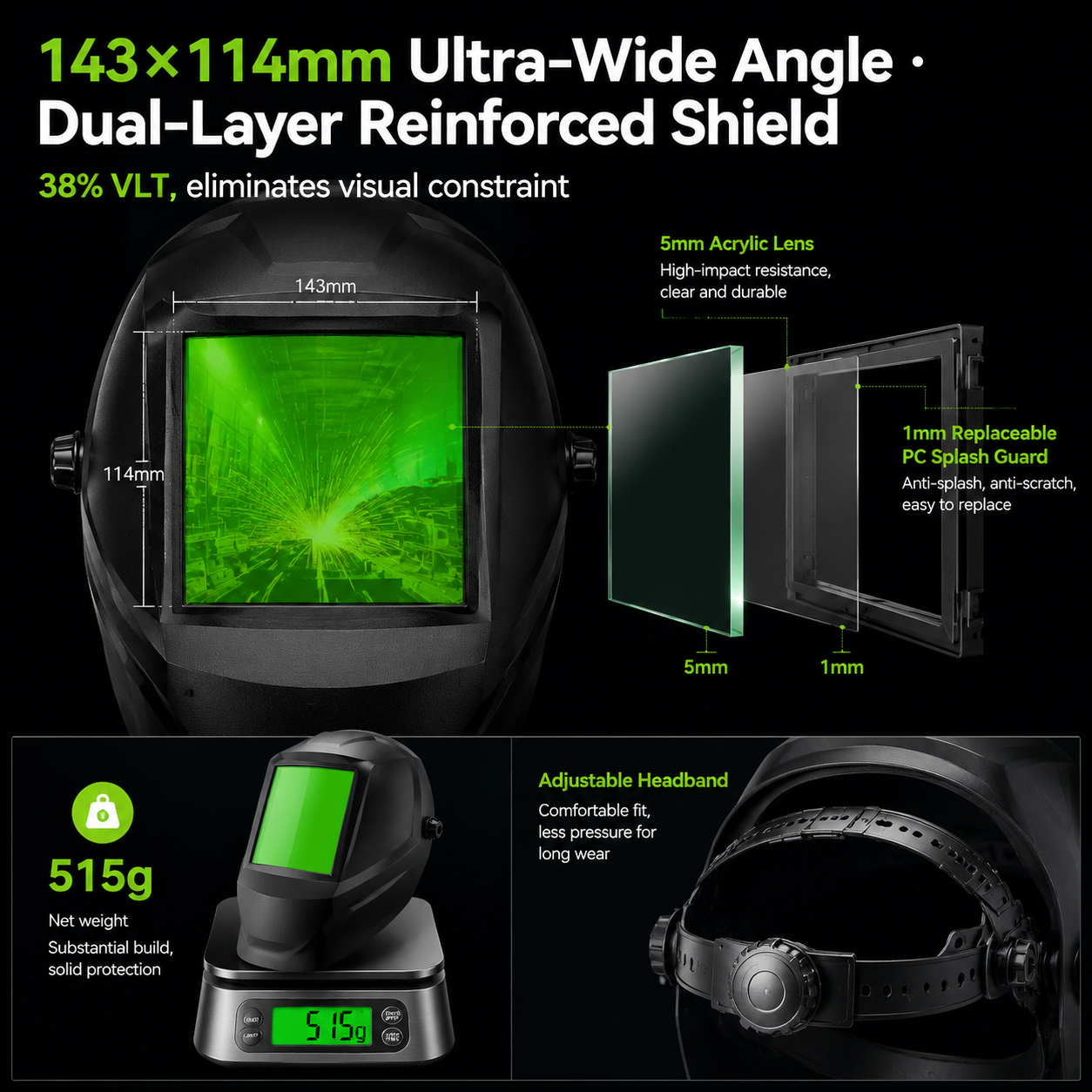

- • Dual-layer protection: 5mm main lens + replaceable 1mm PC cover
- • Comfortable wear: 515g net weight with adjustable headband
- • LOGO customization available for professional branding
Specifications
- Model
- SR32A
- Type
- Laser Welding Helmet (Standard)
- Protection Range
- 900-1100nm
- Optical Density
- OD6+
- VLT
- 38%
- LIDT
- ≤6 W/cm²
- Lens Color
- Green
- Main Lens Thickness
- 5mm
- PC Cover Thickness
- 1mm
- Viewing Window Size
- 143×114mm
- Net Weight
- 515g
- Product Size
- 230×300×330mm
- Headband Type
- Adjustable
- Customization
- LOGO Available
- Application
- Laser Welding
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
