SR61A Laser Marking Machine Shield (270° Flip)

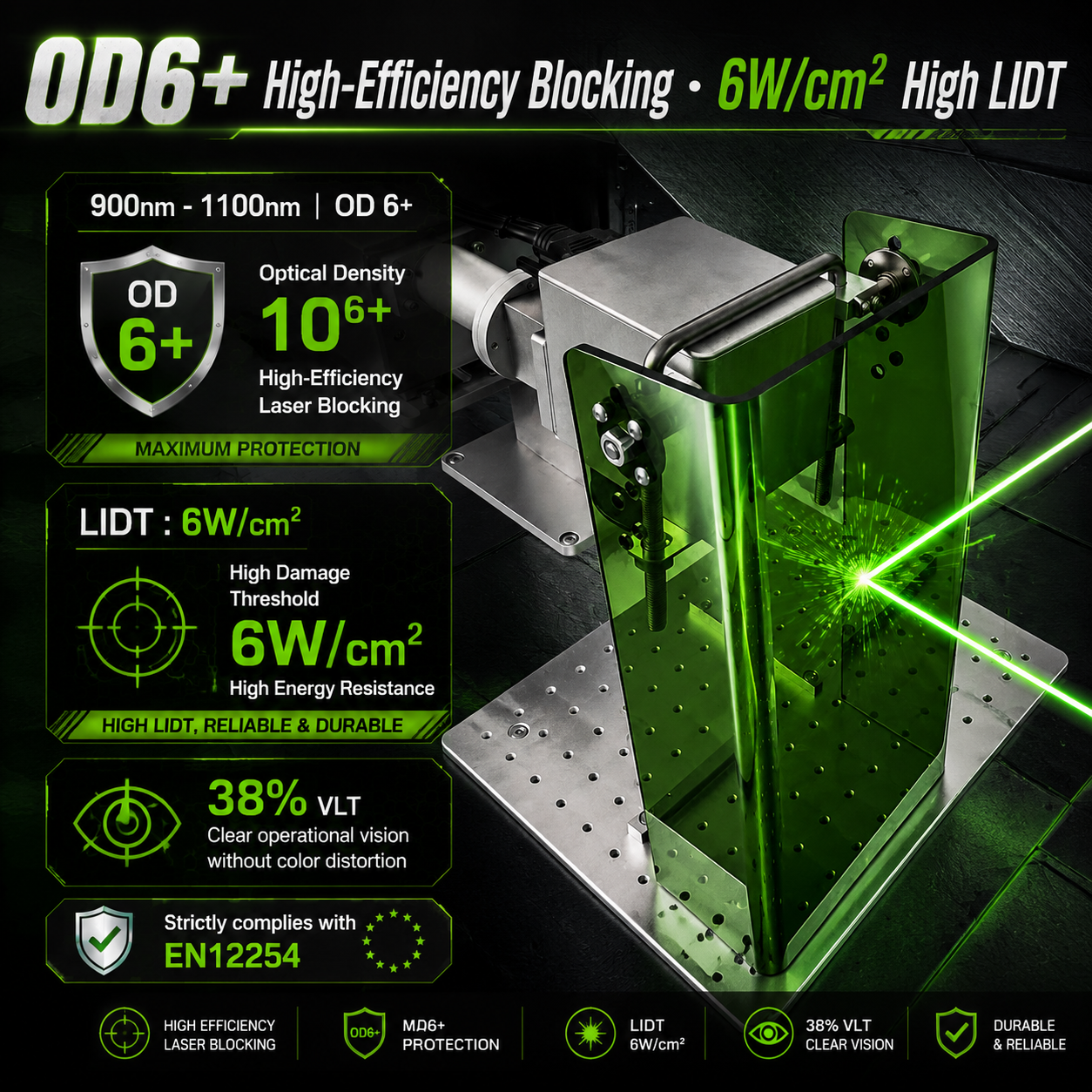

hieldrays SR61A Laser Marking Shield, 270° wide protection with damped hinge for flip-up and hold-at-any-position. 900-1100nm, OD6+, green acrylic, VLT 38%, focus adjustable. 500g, CE certified. For blue, UV & fiber marking machines—safety meets convenience.
Product Gallery
Description
SR61A Laser Marking Shield, designed for marking safety. 270° flip with damped hinge holds position anywhere for flexible operation. OD6+ at 900-1100nm, 38% VLT for clear view. Focus adjustable for different needs. Green acrylic, 500g, CE certified.
Features
- • 270° wide protection: full coverage against scattered laser

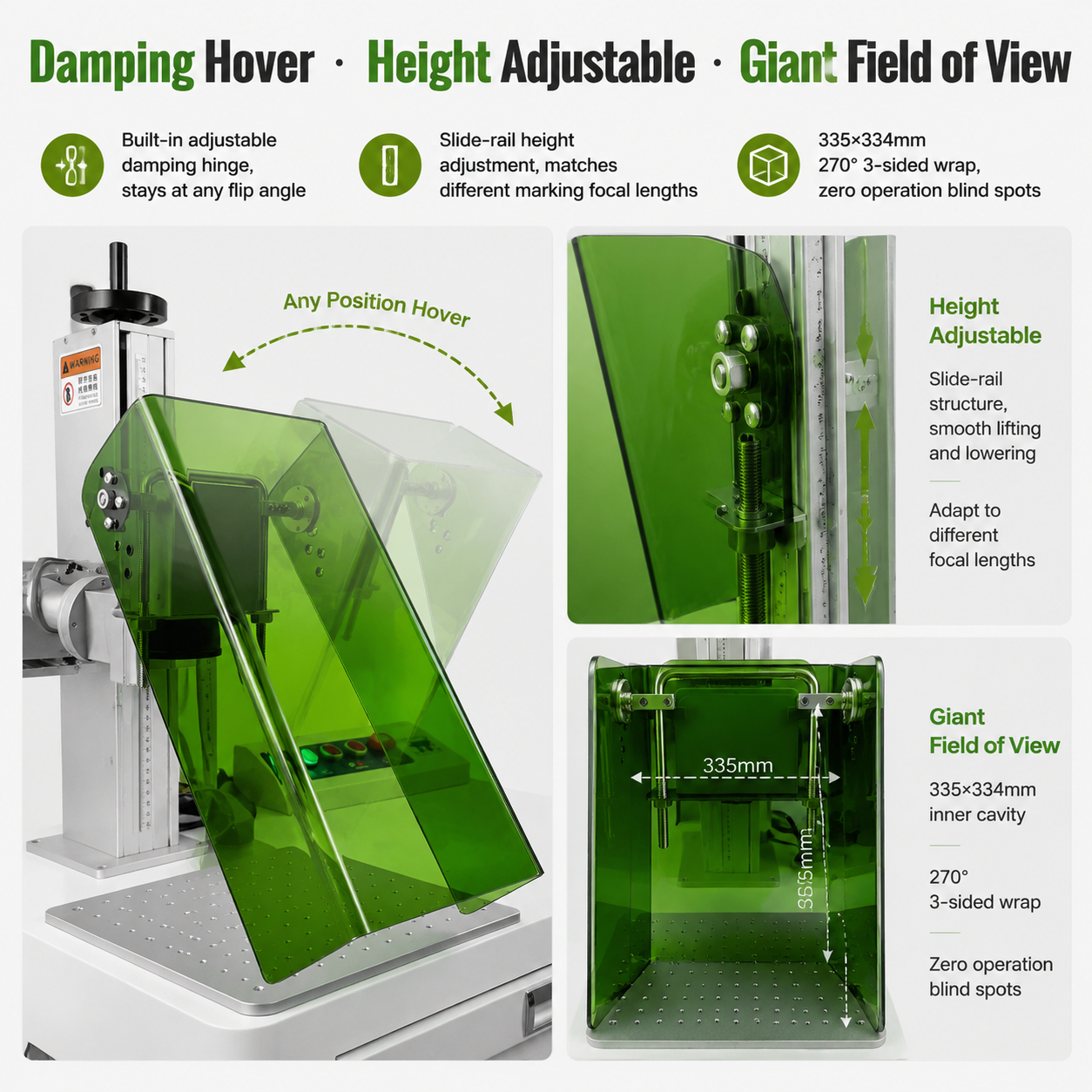

- • Damped flip design: holds position anywhere for flexible operation
- • Focus adjustable: adapts to different marking machine needs
- • High-grade OD6+ at 900-1100nm for eye safety
- • High visibility: VLT 38% for clear view
- • CE certified material: quality assured
- • Lightweight: 500g for easy installation

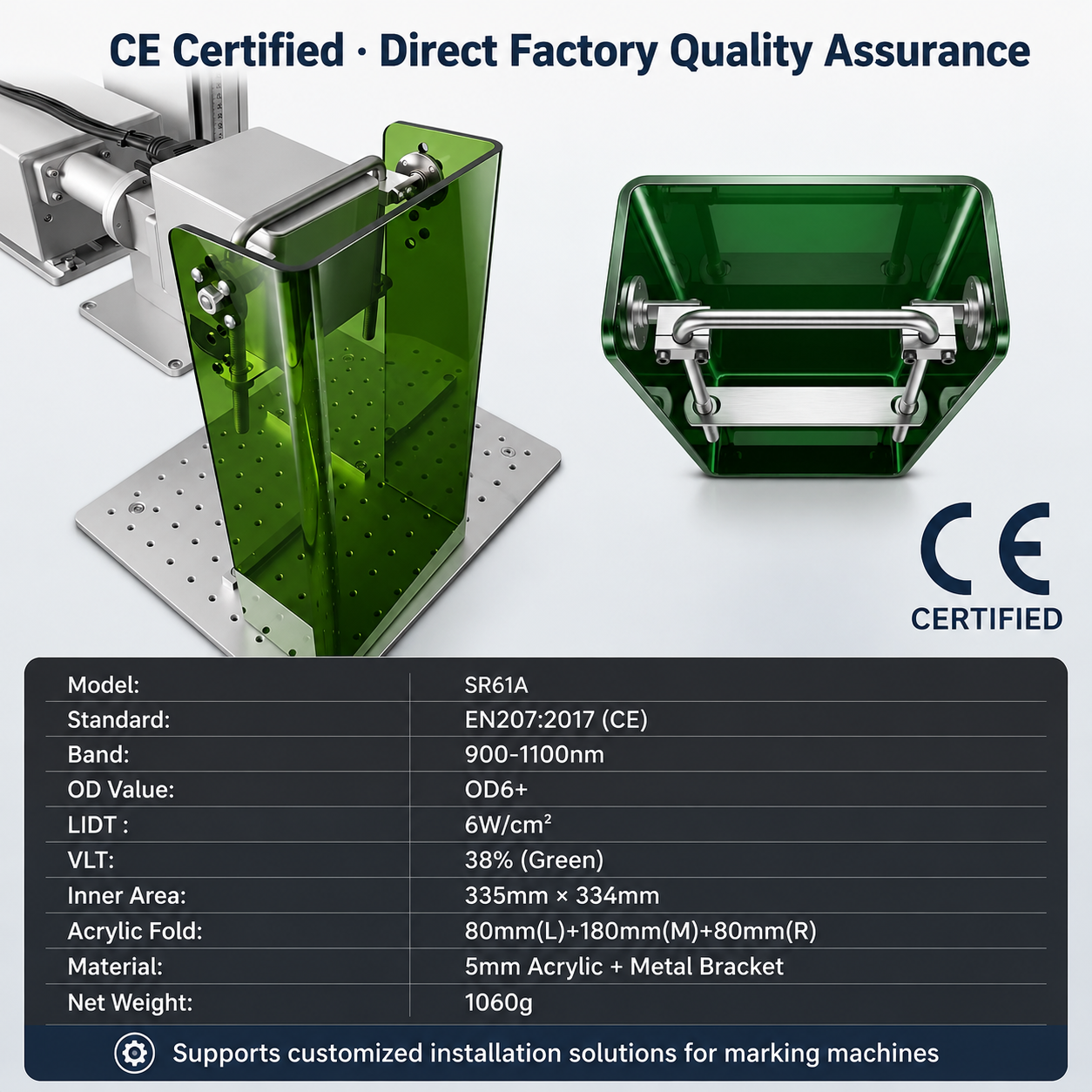

Specifications
- Model
- SR61A
- Type
- Laser Marking Shield (270° Flip)
- Protection Angle
- 270°
- Hinge
- Damped, hold-at-any-position
- Focus Adjustment
- Adjustable
- Protection Range
- 900-1100nm
- Optical Density
- OD6+
- VLT
- 38%
- LIDT
- ≤8 W/cm²
- Material
- Acrylic
- Thickness
- 5mm
- Color
- Green
- Net Weight
- 500g
- Certification
- CE
- Application
- Blue, UV & Fiber Marking Machines
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
