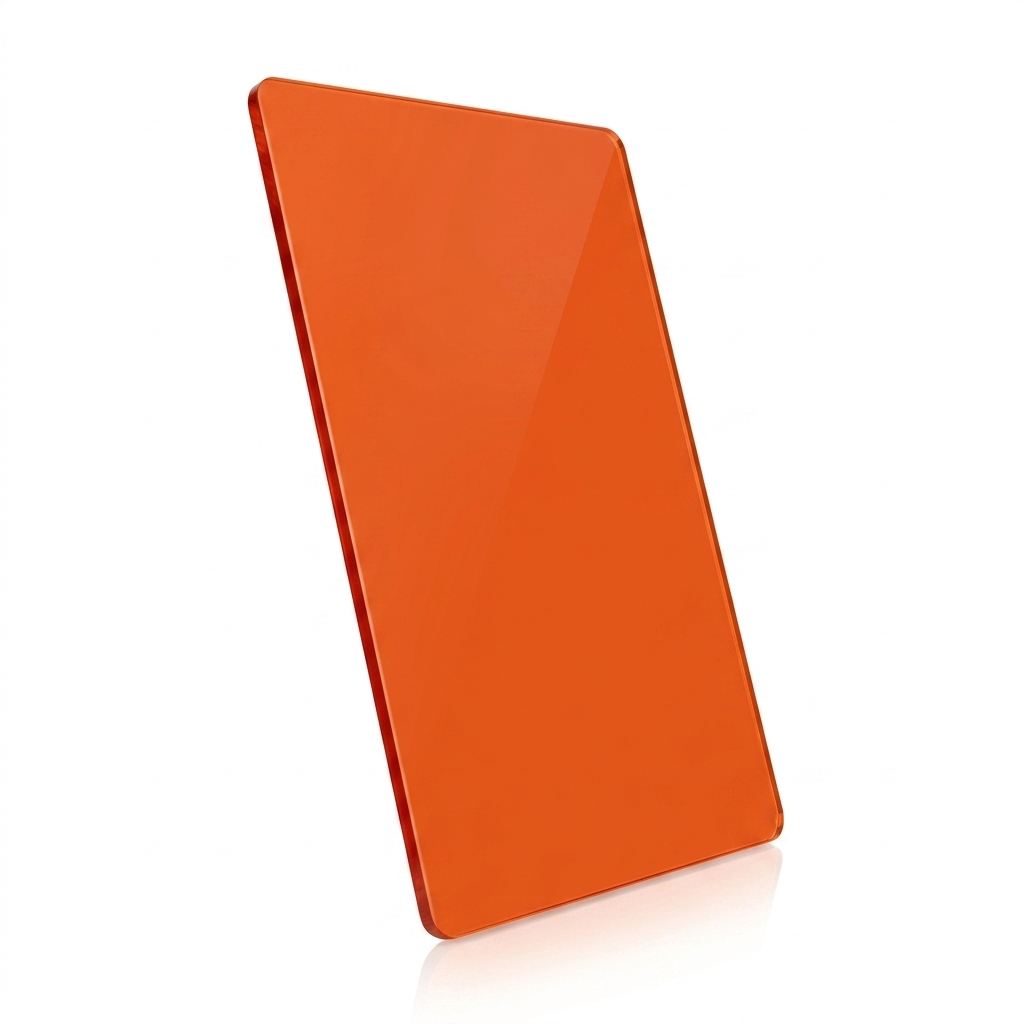

SR02 Orange Laser Safety Barrier
Shieldrays SR02 laser barrier, made of Mitsubishi VH001 optical acrylic, 5mm thick, covers 200-540nm (OD5) for blue, UV & green lasers. VLT 29% balances protection & visibility, LIDT≤8 W/cm². Orange color, density 1.19kg/dm³, CE certified. Max 1360×1050mm, custom sizes. Reliable safety for workshops & labs.
Product Gallery
Description
SR02 uses Mitsubishi VH001 optical-grade acrylic and advanced absorption technology, delivering OD5 protection across 200-540nm, covering blue (445nm), UV and green lasers. 29% VLT ensures effective protection while maintaining clear visibility for operation monitoring. 5mm thickness offers impact resistance, LIDT≤8 W/cm² withstands moderate-to-high power exposure. Orange color provides excellent filtering, CE certified for quality assurance. Standard 1360×1050mm, custom sizes available.
Features
- • Broadband protection: 200-540nm, OD5 high-grade shielding
- • High visibility: VLT 29% for clear observation
- • High damage threshold: LIDT≤8 W/cm²
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Orange color with excellent filtering performance
- • Density 1.19kg/dm³, lightweight yet sturdy
- • CE certified for quality & safety assurance
- • Large format: up to 1360×1050mm, custom sizes available
- • Versatile: compatible with blue, UV & green lasers
Specifications
- Model
- SR02
- Material
- Acrylic (Mitsubishi VH001)
- Thickness
- 5mm
- Range
- 200-540nm, OD5+
- VLT
- 29%
- LIDT
- ≤8 W/cm²
- Color
- Orange
- Density
- 1.19kg/dm³
- Max size
- 1360×1050mm
- Certification
- CE
- Custom
- Yes
- Lasers
- Blue (445nm), UV, Green
- Applications
- viewing windows, lab partitions, medical
- Mounting
- bolts/clamps/custom
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
