SR04 CO₂ Laser Safety Barrier
Shieldrays SR04 laser barrier, made of Mitsubishi VH001 optical acrylic, 5mm thick, covers 9000-14000nm (OD4+) specifically for CO₂ laser protection. VLT 80% offers near-transparent clarity for excellent visibility, LIDT≤8 W/cm². Sky blue color, density 1.19kg/dm³, CE certified. Max 1360×1050mm, custom sizes. Safety & clarity combined for CO₂ laser applications.
Product Gallery
Description
SR04 uses Mitsubishi VH001 optical-grade acrylic and advanced absorption technology, delivering OD4+ protection across 9000-14000nm far-infrared band, specifically designed for CO₂ lasers (typical 10.6μm). 80% VLT offers near-transparent clarity for exceptional viewing precision. 5mm thickness provides impact resistance, LIDT≤8 W/cm² withstands accidental exposure. Sky blue color with high visibility, CE certified. Standard 1360×1050mm, custom sizes available.
Features

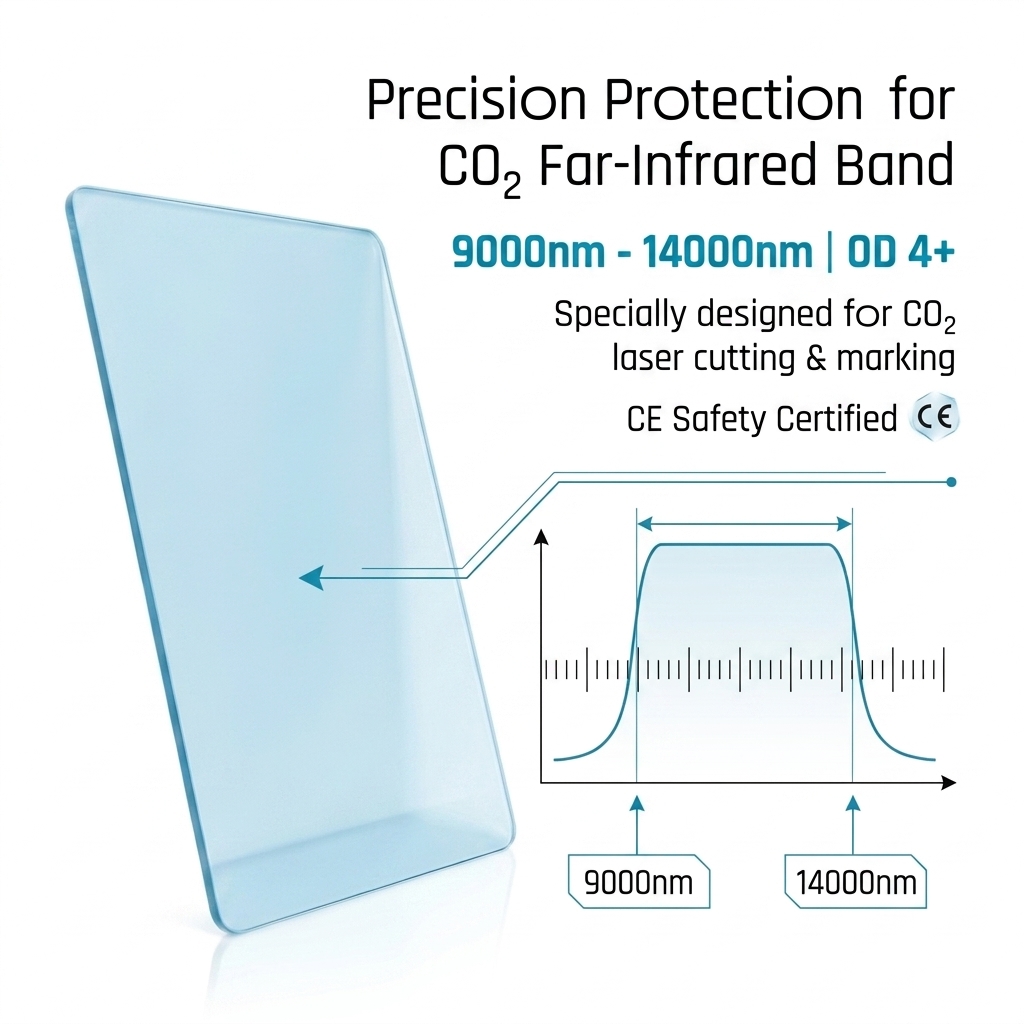

- • Far-infrared dedicated protection: 9000-14000nm, OD4+ for CO₂ lasers
- • Ultra-high visibility: VLT 80%, near-transparent for crystal-clear viewing
- • High damage threshold: LIDT≤8 W/cm²
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Sky blue color with excellent aesthetics & recognition
- • Density 1.19kg/dm³, lightweight yet sturdy
- • CE certified for quality & safety assurance
- • Large format: up to 1360×1050mm, custom sizes available
Specifications
- Model
- SR04
- Material
- Acrylic (Mitsubishi VH001)
- Thickness
- 5mm
- Range & OD Value
- 9000-14000nm, OD4+
- VLT
- 80%
- LIDT
- ≤8 W/cm²
- Color
- Sky Blue
- Density
- 1.19kg/dm³
- Max size
- 1360×1050mm
- Certification
- CE
- Custom
- Yes; Lasers: CO₂ (10.6μm)
- Applications
- CO₂ processing windows, lab partitions
- Mounting
- bolts/clamps/custom
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
