SR10 Acrylic Broadband Laser Safety Barrier
Shieldrays SR10 laser barrier, made of Mitsubishi VH001 optical acrylic, 5mm thick, covers 180-420nm (OD4+) & 900-1100nm (OD6+) for fiber & blue lasers. VLT 38% balances protection & visibility, LIDT≤8 W/cm². Max 1360×1050mm, custom sizes. Reliable safety for workshops & labs.
Product Gallery
Description
SR10 uses Mitsubishi VH001 optical-grade acrylic and advanced absorption technology, delivering OD4+/OD6+ protection at UV (180-420nm) and NIR (900-1100nm), ideal for 1064nm fiber and 445nm blue lasers. 38% VLT enables clear process monitoring without removal. 5mm thickness offers impact resistance, LIDT≤8 W/cm² withstands high-power exposure. Standard 1360×1050mm, custom sizes for various windows & partitions.
Features

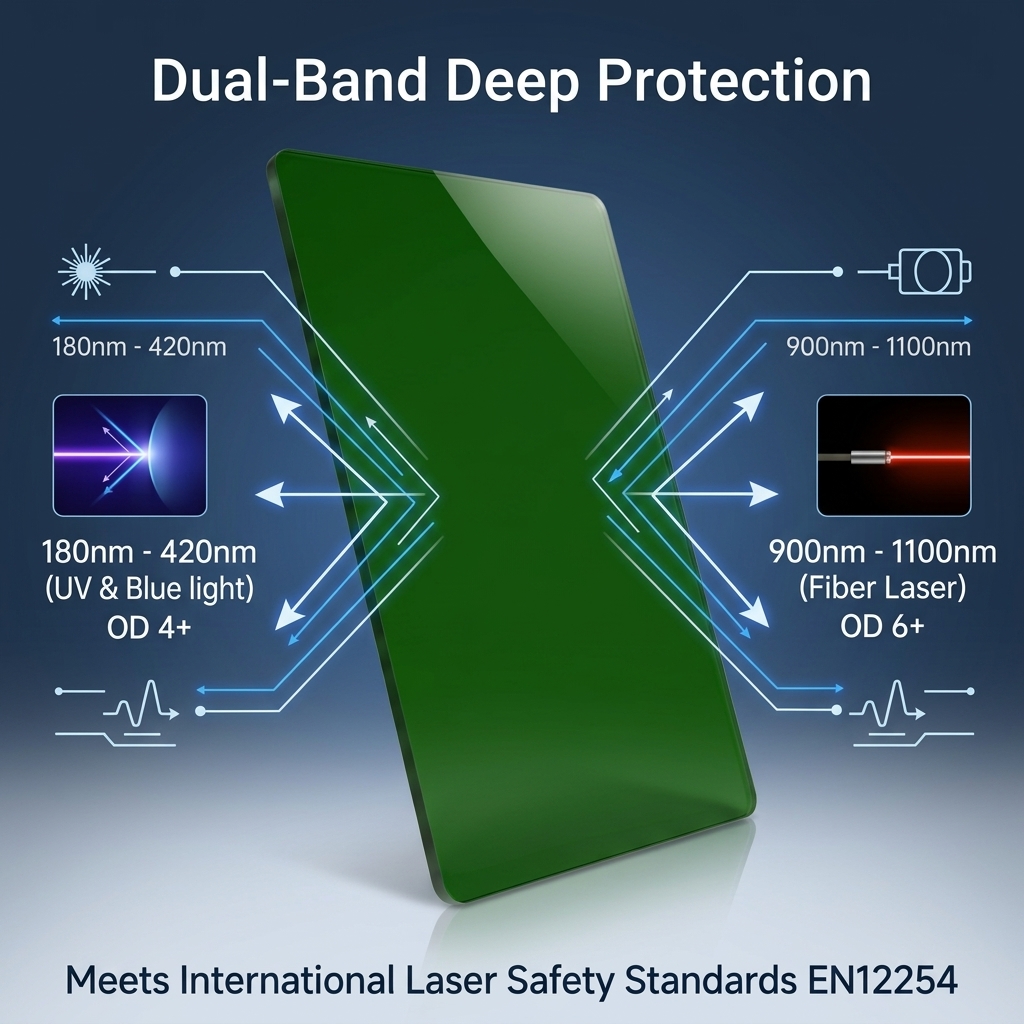

- • Broadband dual protection: 180-420nm (OD4+) & 900-1100nm (OD6+)

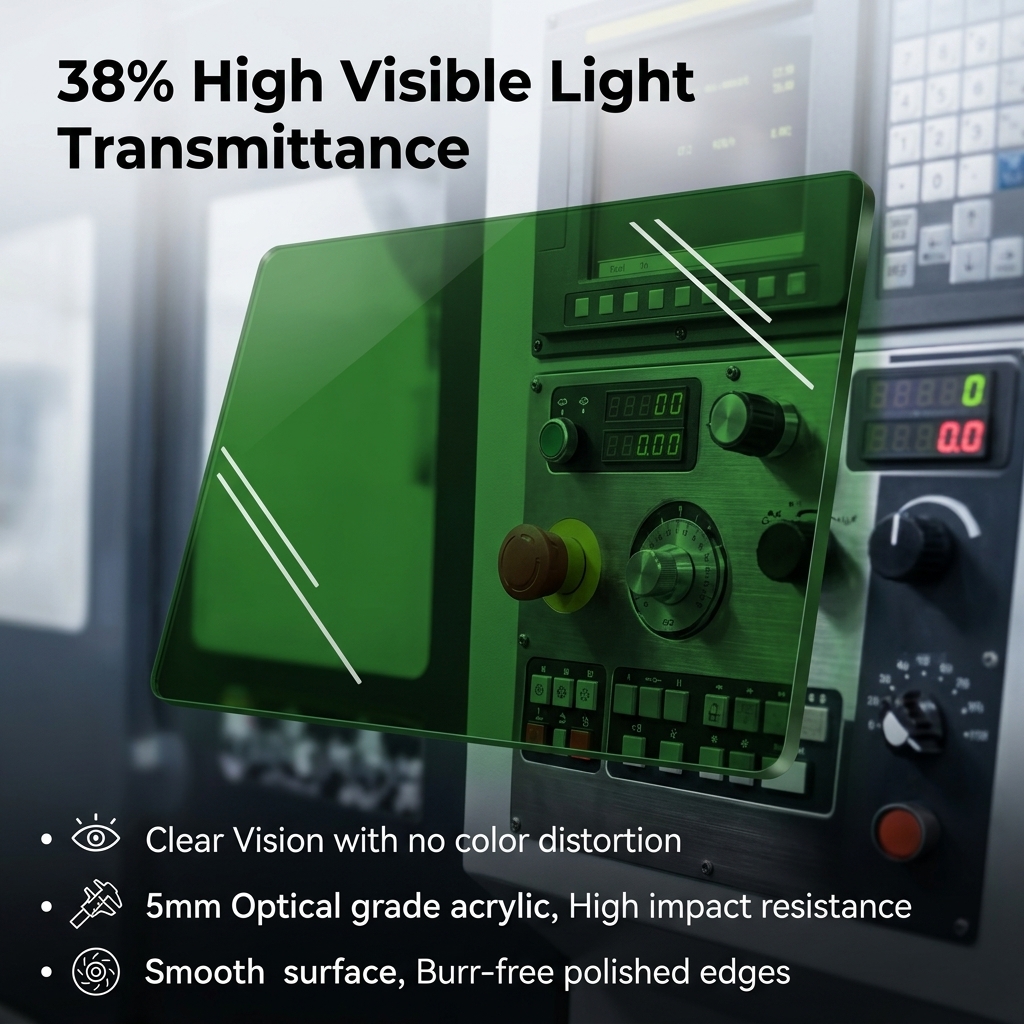

- • High visibility: VLT 38% for clear observation
- • High damage threshold: LIDT≤8 W/cm²
- • Premium optical acrylic: Mitsubishi VH001, 5mm thick, impact & age resistant
- • Large format: up to 1360×1050mm

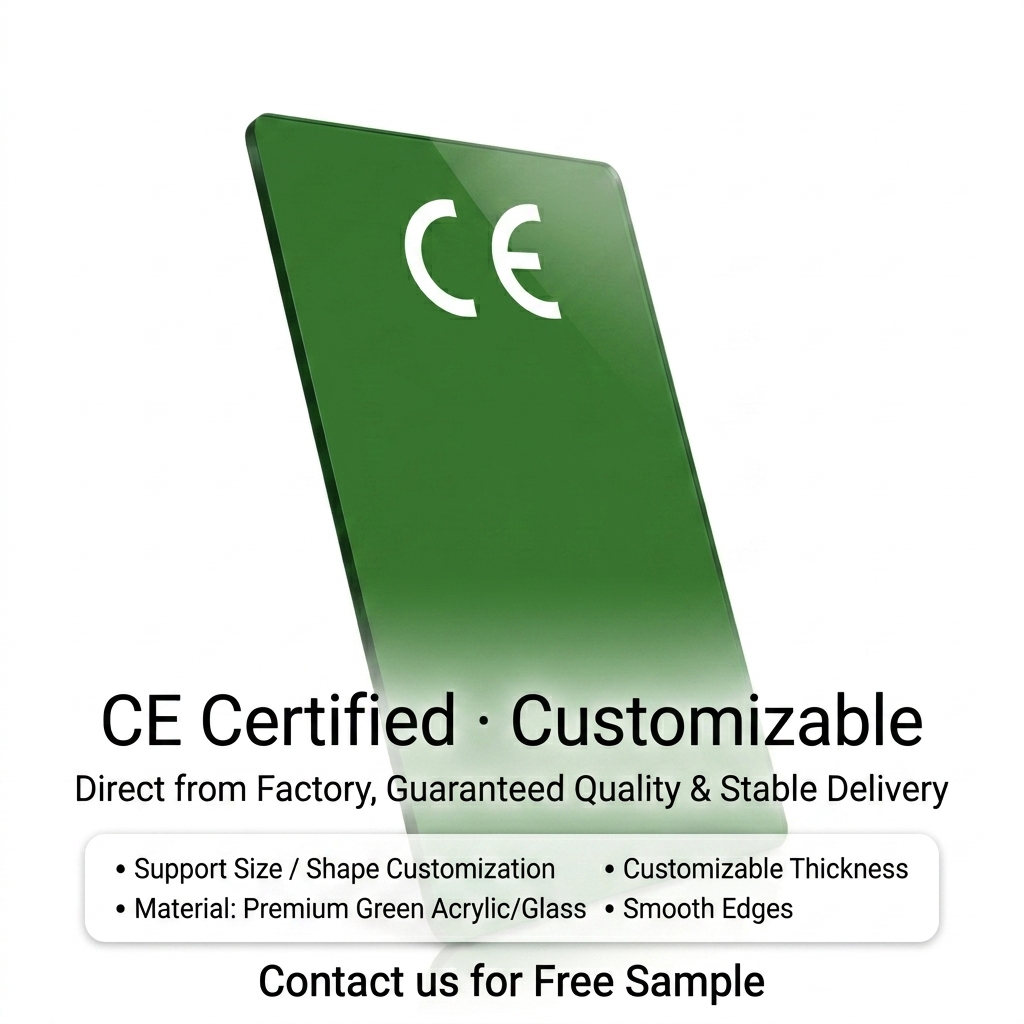

- • CE certified for quality & safety assurance
- • Flexible custom sizing available
- • Easy installation: lightweight, fits windows or partitions
Specifications
- Model
- SR10
- Protection Wavelength 1 & OD Value
- 180-420nm, OD4+
- Protection Wavelength 2 & OD Value
- :OD7+ 900-1100nm, OD6+
- Visible Light Transmittance (VLT)
- 38%
- LIDT
- ≤88 W/cm²
- Material
- Acrylic (Mitsubishi VH001)
- Thickness
- 5mm
- Color
- Green
- Max Size
- 1360×1050mm
- specific Mass
- 1.19kg/dm³
- Applications
- viewing windows, lab partitions, medical
- Cert
- CE
- Custom
- Yes
Need certificates, pricing, or custom dimensions?
Send us your wavelength, OD requirement, dimensions, drawings, or application scenario.
